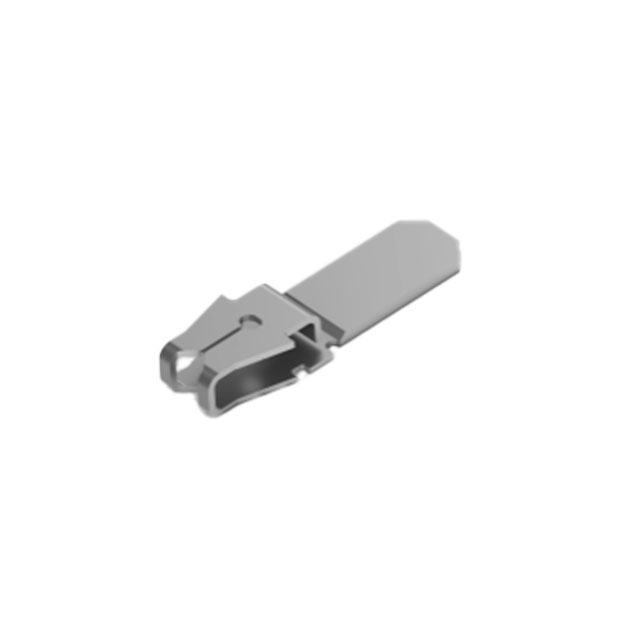

2238089-1
ActiveTE Connectivity Raychem Cable Protection
MAG-MATE TAB 31-28 CU / 29-27 AL TPBR
Deep-Dive with AI
Search across all available documentation for this part.
2238089-1
ActiveTE Connectivity Raychem Cable Protection
MAG-MATE TAB 31-28 CU / 29-27 AL TPBR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2238089-1 |
|---|---|
| Features | QC .110 |
| Size | 1 Gallon |
| Style | 187 |
| Terminal Type | Box IDC |
| Termination | Quick Connect |
| Wire Gauge [Max] | 31 AWG |
| Wire Gauge [Min] | 27 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.16 | |
| Digi-Reel® | 1 | $ 0.16 | ||
| Tape & Reel (TR) | 80000 | $ 0.11 | ||
Description
General part information
MAG-MATE 187 Series
Tab, 2.79 mm [.11 in] Tab Width, Insulation Displacement (IDC), Tin Plating, 10.97 mm [.432 in] Length, Reel, MAG-MATE 187, Magnet Wire Terminals
