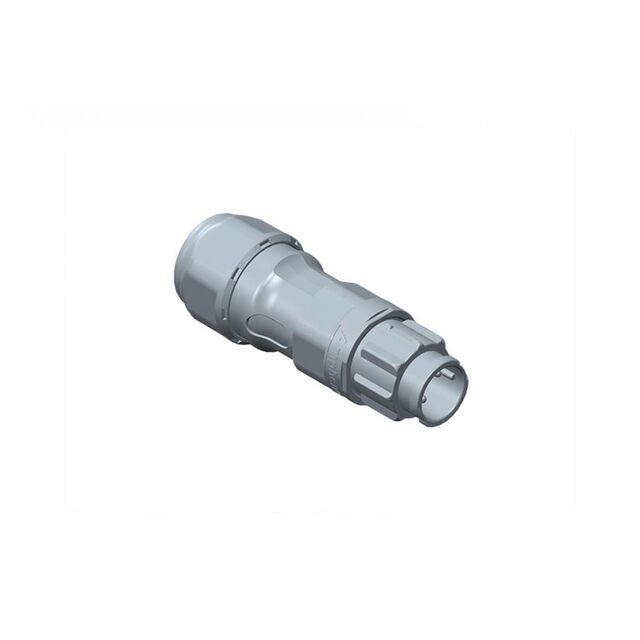

BB-03BMMB-QL8APP

Active

Amphenol LTW

XLOK, B-10A, 03P, CABLE W/O SR

Search across all available documentation for this part.

Active

Amphenol LTW

XLOK, B-10A, 03P, CABLE W/O SR

Technical Specifications

Parameters and characteristics for this part

Part	Backshell Material, Plating	Orientation	Connector Type	Contact Finish - Mating	Voltage Rating	Mounting Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shielding	Fastening Type	Shell Size - Insert	Contact Material	Insert Material	Features	Termination	Ingress Protection	Current Rating (Amps)	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]
Amphenol LTW BB-03BMMB-QL8SPP	Thermoplastic	Keyed	Male Pins Plug	Silver	300 VDC	Free Hanging (In-Line)	Black	-40 °C	105 ░C	Plastic	Unshielded	Bayonet Lock	B	Copper Alloy	Thermoplastic	Backshell	Screw	IP68 - Dust Tight Waterproof	10 A	0.236 in	6 mm	5 mm	0.197 in
Amphenol LTW BB-03BMMB-QL8APP	Thermoplastic	Keyed	Male Pins Plug	Silver	300 VDC	Free Hanging (In-Line)	Black	-40 °C	105 ░C	Plastic	Unshielded	Bayonet Lock	B	Copper Alloy	Thermoplastic	Backshell	Screw	IP68 - Dust Tight Waterproof	10 A
Amphenol LTW BB-03BMMB-QL8LPP	Thermoplastic	Keyed	Male Pins Plug	Silver	300 VDC	Free Hanging (In-Line)	Black	-40 °C	105 ░C	Plastic	Unshielded	Bayonet Lock	B	Copper Alloy	Thermoplastic	Backshell	Screw	IP68 - Dust Tight Waterproof	10 A	0.394 in	10 mm	8 mm	0.315 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 11.36

General part information

3 Position Circular Connector Plug, Male Pins Screw

Technical documentation and resources

No documents available
