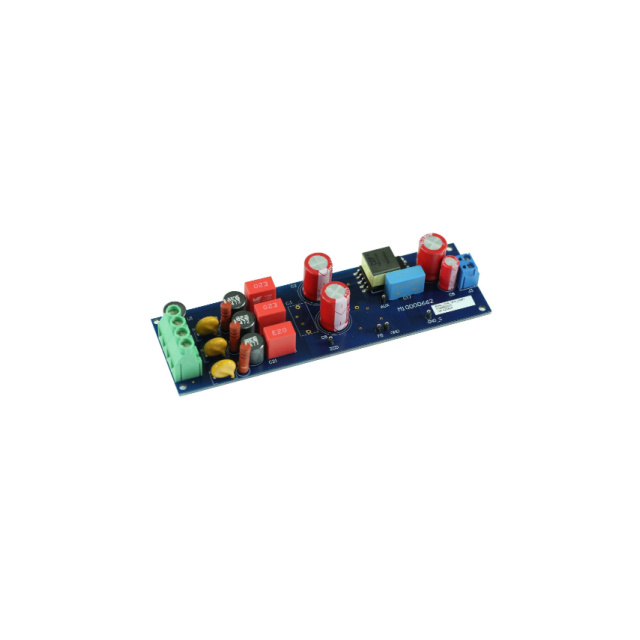

EVAL12W3PHSMP7TOBO1
ActiveTHIS 12W AC/DC POWER SUPPLY IS DESIGNED SPECIFICALLY TO POWER A 3 PHASE SMART ELECTRICITY METER, SHOWCASING THE LATEST 950V COOLMOS™ P7 SJ MOSFET. THIS EVALUATION BOARD IS ALSO EQUIPPED WITH OTHER INFINEON COMPONENTS SUCH AS QR PWM CONTROLLER AND NPN SILICON AF TRANSISTOR.
EVAL12W3PHSMP7TOBO1
ActiveTHIS 12W AC/DC POWER SUPPLY IS DESIGNED SPECIFICALLY TO POWER A 3 PHASE SMART ELECTRICITY METER, SHOWCASING THE LATEST 950V COOLMOS™ P7 SJ MOSFET. THIS EVALUATION BOARD IS ALSO EQUIPPED WITH OTHER INFINEON COMPONENTS SUCH AS QR PWM CONTROLLER AND NPN SILICON AF TRANSISTOR.
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL12W3PHSMP7TOBO1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 1 A |
| Main Purpose | Primary Side, AC/DC |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 12 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Utilized IC / Part | IPD95R1K2P7, ICE5QSAG |
| Voltage - Input [Max] | 460 VAC |
| Voltage - Input [Min] | 185 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVAL12 Series
This 12W AC/DC power supply is designed specifically to power a 3 phase smart electricity meter, showcasing the latest950V CoolMOS™ P7 SJ MOSFET. This evaluation board is also equipped with other Infineon components such asQR PWM controllerandNPN silicon AF transistor. The board aims at providing smart electricity meter designers with an idea on how to power up a smart meter using the latest state-of-the-art SJ technology. This 12W 3-phase smart meter SMPS board satisfies all the necessary technical requirements. It also provides a wide AC input range from 185-460AC. It features more than 82% efficiency at full load, has an output short protection and better thermal performance with the latestCoolMOS™ P7 series. Equipped with950V CoolMOS™ P7 SJ MOSFETin DPAK, the board allows a drop in replacement by SOT-223, providing a cost down potential.
