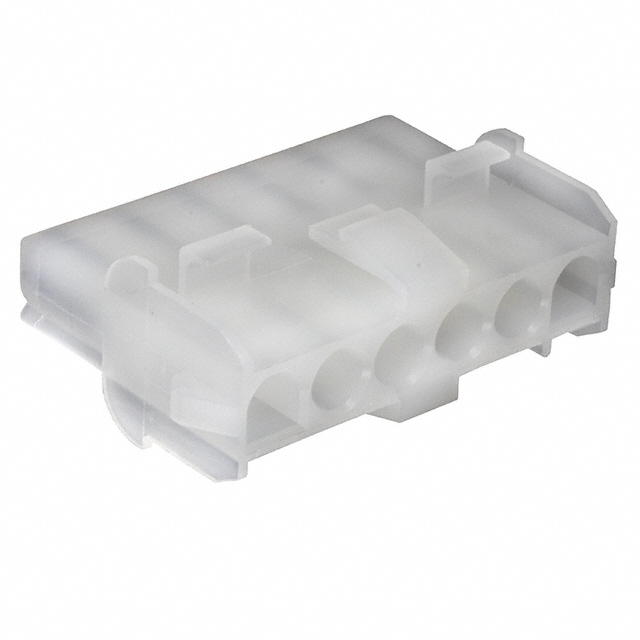

926307-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 6POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
926307-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 6POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 926307-1 | 926307 Series |
|---|---|---|
| Color | Natural | Natural, Red |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Male or Female |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon, Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
926307 Series
CONN RCPT HSG 6POS
| Part | Contact Termination | Mounting Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Number of Rows | Color | Connector Type | Contact Type | Insulation Material | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 926307-1 | Crimp | Panel Mount, Snap-In | Locking Ramp | 105 ░C | -55 °C | 6 | 1 | Natural | Receptacle | Male or Female | Nylon, Polyamide (PA) | Contacts Not Included |
TE Connectivity AMP Connectors 926307-3 | Crimp | Panel Mount, Snap-In | Locking Ramp | 105 ░C | -55 °C | 6 | 1 | Red | Receptacle | Male or Female | Polyamide (PA66), Nylon 6/6 | Contacts Not Included |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.76 | |
| 10 | $ 0.72 | |||
| 25 | $ 0.69 | |||
| 50 | $ 0.68 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.57 | |||
| 500 | $ 0.56 | |||
Description
General part information
926307 Series
6 Rectangular Connectors - Housings Receptacle Natural
