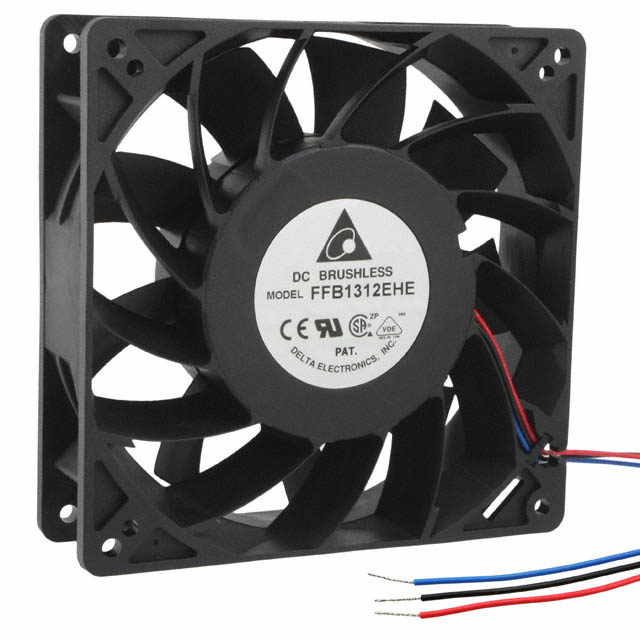

FFB1312EHE-F00

Obsolete

Delta Electronics

FAN AXIAL 127X38MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 127X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	FFB1312EHE-F00

Air Flow	5.6 mł/min
Air Flow	200 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	2.74 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	32.88 W
RPM	3850 RPM
Size / Dimension [x]	127 mm
Size / Dimension [y]	127 mm
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	8.5
Weight	499 g
Weight	1.1 lbs
Width [y]	38 mm

Part	Termination	Air Flow	Air Flow	Material - Frame	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Power (Watts)	Weight	Weight	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Voltage - Rated	Static Pressure	Static Pressure	Bearing Type	Width [y]	Approval Agency	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Features	RPM
Delta Electronics FFB1312VHE	2 Wire Leads	160 CFM	4.48 m³/min	Plastic	1.32 A	127 mm	127 mm	70000 Hrs	15.84 W	499 g	1.1 lbs	13.2 VDC	7 V	Tubeaxial	12 VDC	125.5 Pa	0.504 in H2O	Ball	38 mm	CE CSA UL VDE	Plastic	70 °C	70 °C	-10 °C	-10 °C	53 dB
Delta Electronics FFB1312EHE-F00	3 Wire Leads	200 CFM	5.6 mł/min	Plastic	2.74 A	127 mm	127 mm	70000 Hrs	32.88 W	499 g	1.1 lbs	13.2 VDC	8.5	Tubeaxial	12 VDC			Ball	38 mm	CE CSA UL VDE	Plastic	70 °C	70 °C	-10 °C	-10 °C	59.5 dB	Locked Rotor Protection Speed Sensor (Tach)	3850 RPM
Delta Electronics FFB1312SHE	2 Wire Leads	180 CFM	5.04 mł/min	Plastic	1.85 A	127 mm	127 mm	70000 Hrs	22.2 W	499 g	1.1 lbs	13.2 VDC	7 V	Tubeaxial	12 VDC	159.9 Pa	0.642 in H2O	Ball	38 mm	CE CSA UL VDE	Plastic	70 °C	70 °C	-10 °C	-10 °C	56.5 dB		3450 RPM
Delta Electronics FFB1312EHE	2 Wire Leads	200 CFM	5.6 mł/min	Plastic	2.74 A	127 mm	127 mm	70000 Hrs	32.88 W	499 g	1.1 lbs	13.2 VDC	8.5	Tubeaxial	12 VDC			Ball	38 mm	CE CSA UL VDE	Plastic	70 °C	70 °C	-10 °C	-10 °C	59.5 dB		3850 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 12VDC Square - 127mm L x 127mm H Ball 200.0 CFM (5.60m³/min) 3 Wire Leads
