6-104069-1

Active

TE Connectivity Raychem Cable Protection

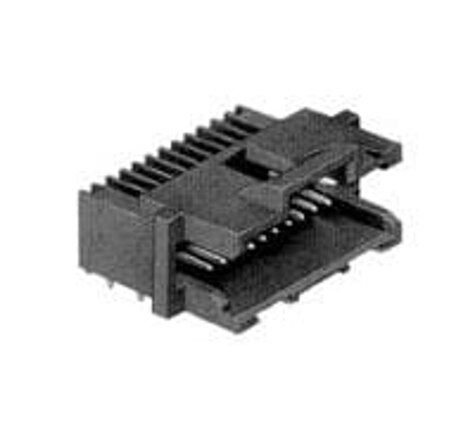

CONN HEADER R/A 16POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6-104069-1

Active

TE Connectivity Raychem Cable Protection

CONN HEADER R/A 16POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6-104069-1

Applications	Medical, General Purpose, Automotive, Telecommunications
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	150 Áin
Contact Finish Thickness - Post	3.81 Ám
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 2 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	30 VAC

AMPMODU System 50 Series

Board to Board & Mezzanine Connectors 050X100 HDR 2X25P VRT T/H U/S

...

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Insulation Height	Insulation Height	Features	Style	Termination	Voltage Rating	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Shape	Contact Material	Material Flammability Rating	Contact Type	Connector Type	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish - Post	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Mounting Type	Insulation Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Number of Positions	Insulation Height [z]	Insulation Height [z]
TE Connectivity Raychem Cable Protection 6-104069-0	30 Áin	0.76 Ám	Automotive General Purpose Medical Telecommunications	7.37 mm	0.29 in	Board Guide	Board to Board Cable	Solder	30 VAC	Gold	0.125 in	3.18 mm	0.05 in	1.27 mm	14	Circular	Copper Alloy	UL94 V-0	Male Pin	Header	2.54 mm	0.1 in	All	Tin	Shrouded - 2 Wall	2.54 mm	0.1 in	Through Hole Right Angle	Thermoplastic	Latch Holder	-65 ░C	105 ░C	2	150 Áin	3.81 Ám	Black
TE Connectivity Raychem Cable Protection 5-104477-3	30 Áin	0.76 Ám	Automotive General Purpose Medical Telecommunications	7.37 mm	0.29 in	Board Guide	Board to Board Cable	Solder	30 VAC	Gold	0.125 in	3.18 mm	0.05 in	1.27 mm	30	Circular	Copper Alloy	UL94 V-0	Male Pin	Header	3.68 mm	0.145 in	All	Tin	Shrouded - 2 Wall	2.54 mm	0.1 in	Through Hole Right Angle	Thermoplastic	Latch Holder	-65 ░C	105 ░C	2	150 Áin	3.81 Ám	Black
TE Connectivity Raychem Cable Protection 5-104118-3	30 Áin	0.76 Ám	Automotive General Purpose Medical Telecommunications	5.49 mm	0.216 in		Board to Board Cable	Solder	30 VAC	Gold	0.125 in	3.18 mm	0.05 in	1.27 mm	10	Circular	Copper Alloy	UL94 V-0	Male Pin	Header	2.54 mm	0.1 in	All	Tin	Unshrouded	2.54 mm	0.1 in	Through Hole Right Angle	Thermoplastic	Push-Pull	-65 ░C	105 ░C	2	150 Áin	3.81 Ám	Black
TE Connectivity Raychem Cable Protection 6-104069-1	30 Áin	0.76 Ám	Automotive General Purpose Medical Telecommunications	7.37 mm	0.29 in	Board Guide	Board to Board Cable	Solder	30 VAC	Gold	0.125 in	3.18 mm	0.05 in	1.27 mm		Circular	Copper Alloy	UL94 V-0	Male Pin	Header	2.54 mm	0.1 in	All	Tin	Shrouded - 2 Wall	2.54 mm	0.1 in	Through Hole Right Angle	Thermoplastic	Latch Holder	-65 ░C	105 ░C	2	150 Áin	3.81 Ám	Black	16
TE Connectivity Raychem Cable Protection 5-147377-7	30 Áin	0.76 Ám	Automotive General Purpose Medical Telecommunications	11.05 mm	0.435 in	Pick and Place	Board to Board Cable	Solder	30 VAC	Gold	0.125 in	3.18 mm	0.05 in	1.27 mm	80	Circular	Copper Alloy	UL94 V-0	Male Pin	Header			All	Tin	Shrouded - 4 Wall	2.54 mm	0.1 in	Surface Mount	Polyphthalamide (PPA)	Latch Holder	-65 ░C	105 ░C	2	150 Áin	3.81 Ám	Black
TE Connectivity Raychem Cable Protection 5-104477-2	30 Áin	0.76 Ám	Automotive General Purpose Medical Telecommunications	7.37 mm	0.29 in	Board Guide	Board to Board Cable	Solder	30 VAC	Gold	0.125 in	3.18 mm	0.05 in	1.27 mm	20	Circular	Copper Alloy	UL94 V-0	Male Pin	Header	3.68 mm	0.145 in	All	Tin	Shrouded - 2 Wall	2.54 mm	0.1 in	Through Hole Right Angle	Thermoplastic	Latch Holder	-65 ░C	105 ░C	2	150 Áin	3.81 Ám	Black
TE Connectivity Raychem Cable Protection 104074-2	30 Áin	0.76 Ám	Automotive General Purpose Medical Telecommunications	4.83 mm	0.19 in	Board Guide	Board to Board Cable	Solder	30 VAC	Gold	0.125 in	3.18 mm	0.05 in	1.27 mm		Circular	Copper Alloy	UL94 V-0	Male Pin	Header	2.54 mm	0.1 in	All	Tin-Lead	Shrouded - 2 Wall			Through Hole Right Angle	Thermoplastic	Latch Holder	-65 ░C	105 ░C	1	150 Áin	3.81 Ám	Black
TE Connectivity Raychem Cable Protection 6-104068-3	30 Áin	0.76 Ám	Automotive General Purpose Medical Telecommunications				Board to Board Cable	Solder	30 VAC	Gold	0.125 in	3.18 mm	0.05 in	1.27 mm	34	Circular	Copper Alloy	UL94 V-0	Male Pin	Header	2.54 mm	0.1 in	All	Tin	Shrouded - 2 Wall	2.54 mm	0.1 in	Through Hole	Thermoplastic	Latch Holder	-65 ░C	105 ░C	2	150 Áin	3.81 Ám	Black		9.91 mm	0.39 in
TE Connectivity Raychem Cable Protection 104549-2	30 Áin	0.76 Ám	Automotive General Purpose Medical Telecommunications	11.05 mm	0.435 in		Board to Board Cable	Solder	30 VAC	Gold	0.125 in	3.18 mm	0.05 in	1.27 mm	20	Circular	Copper Alloy	UL94 V-0	Male Pin	Header			All	Tin-Lead	Shrouded - 4 Wall	2.54 mm	0.1 in	Surface Mount	Polyphthalamide (PPA)	Latch Holder	-65 ░C	105 ░C	2	150 Áin	3.81 Ám	Black
TE Connectivity Raychem Cable Protection 6-104186-5	30 Áin	0.76 Ám	Automotive General Purpose Medical Telecommunications	2.95 mm	0.116 in		Board to Board Cable	Solder	30 VAC	Gold	0.125 in	3.18 mm	0.05 in	1.27 mm	30	Circular	Copper Alloy	UL94 V-0	Male Pin	Header	2.54 mm	0.1 in	All	Tin	Unshrouded			Through Hole Right Angle	Thermoplastic	Push-Pull	-65 ░C	105 ░C	1	150 Áin	3.81 Ám	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.24
		31	$ 5.33
		124	$ 4.90
		527	$ 4.55
		1023	$ 4.07

Description

General part information

AMPMODU System 50 Series

Board to Board & Mezzanine Connectors 050X100 HDR 2X25P VRT T/H U/S
