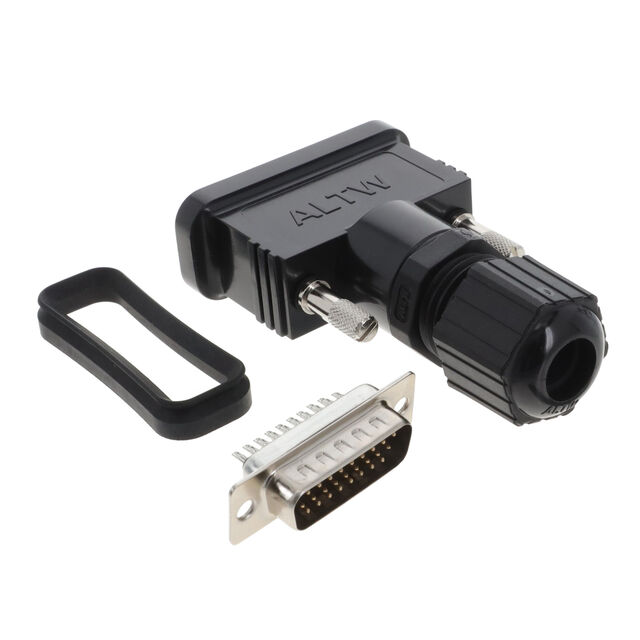

HDB-26BMMA-SL7001
ActiveAmphenol LTW
CONN D-SUB HD PLUG 26P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HDB-26BMMA-SL7001
ActiveAmphenol LTW
CONN D-SUB HD PLUG 26P SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HDB-26BMMA-SL7001 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Features | Grounding Indents, Shielded |
| Flange Feature | Housing/Shell (Unthreaded) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.36 | |
| 10 | $ 9.49 | |||
| 25 | $ 8.58 | |||
| 50 | $ 7.96 | |||
| 100 | $ 7.40 | |||
| 250 | $ 6.74 | |||
| 500 | $ 6.29 | |||
| 1000 | $ 5.89 | |||
Description
General part information
HDB-26BMMA Series
26 Position D-Sub, High Density Plug, Male Pins Connector
