BU-21349300405010

Active

Mueller Electric Co

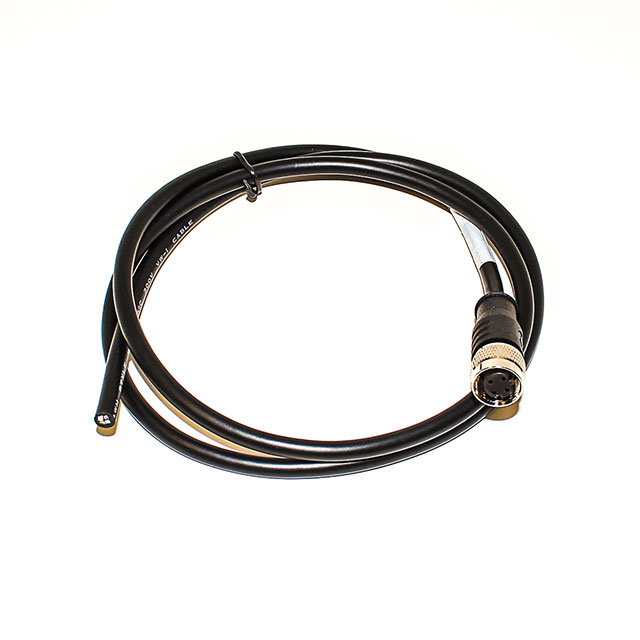

SENSOR CABLE, 4 POS, M12 RECEPTACLE, FREE END, 4 POSITIONS, 1 M, 3.3 FT

Search across all available documentation for this part.

Active

Mueller Electric Co

SENSOR CABLE, 4 POS, M12 RECEPTACLE, FREE END, 4 POSITIONS, 1 M, 3.3 FT

Technical Specifications

Parameters and characteristics for this part

Specification	BU-21349300405010

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	D
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Shielded
Usage	Industrial Environments

Part	Length [x]	Length	Quantity	Jaw Opening	Jaw Opening	Type	Material	Current Rating (Amps)	Insulation	Termination	Color	Length [x]	Plating	Shielding	1st Connector Number of Positions Loaded	1st Connector Gender	Ingress Protection	Cable Type	1st Connector Mounting Type	Cable Material	1st Connector Orientation	Usage	Assembly Configuration	1st Connector Type	1st Connector Number of Positions	1st Connector Shell Size - Insert	2nd Connector Type	Length	Ratings
Mueller Electric Co BU-21AHT
Mueller Electric Co BU-21MPN	4.291 in	109 mm	1 Box	27 mm	1.063 in	Heavy Duty	Copper	100 A	Non-Insulated	Solder	Natural
Mueller Electric Co BU-21APN	4.11 in		1 Box	26.92 mm	1.06 in	Heavy Duty		50 A	Non-Insulated	Crimp or Screw	Natural	104.39 mm	Zinc
Mueller Electric Co BU-21349300405010	3.28 ft										Black	1 m		Shielded	All	Female Sockets	IP67/IP68 - Dust Tight Waterproof	Round	Free Hanging (In-Line)	Polyvinyl Chloride (PVC)	D	Industrial Environments	Standard	Plug	4	M12	Wire Leads
Mueller Electric Co BU-21X	3.75 in		1 Box	27 mm	1.063 in	Heavy Duty	Stainless Steel	50 A	Non-Insulated	Screw	Natural	95.25 mm
Mueller Electric Co BU-21AEZ		114.3 mm	1 Box	27 mm	1.063 in	Heavy Duty		50 A	Non-Insulated	10-32 Female Thread			Zinc															4.5 in
Mueller Electric Co BU-21CEZ		114.3 mm	1 Box	27 mm	1.063 in	Heavy Duty	Copper	100 A	Non-Insulated	10-32 Female Thread																		4.5 in
Mueller Electric Co BU-21APS	4.11 in		1 Box	26.92 mm	1.06 in	Heavy Duty		50 A	Non-Insulated	Crimp or Screw	Natural	104.39 mm	Zinc
Mueller Electric Co BU-21CPN	4.11 in		1 Box	26.92 mm	1.06 in	Heavy Duty	Copper	100 A	Non-Insulated	Crimp or Screw	Natural	104.39 mm																	AA59466-010

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.68
		10	$ 23.50
		100	$ 22.40
LCSC	Piece	1	$ 9.03
Newark	Each	1	$ 30.52

General part information

Circular Cable Assembly Shielded 3.28' (1.00m)
