1134-0-18-15-56-27-10-0
ActiveMill-Max Manufacturing Corp.

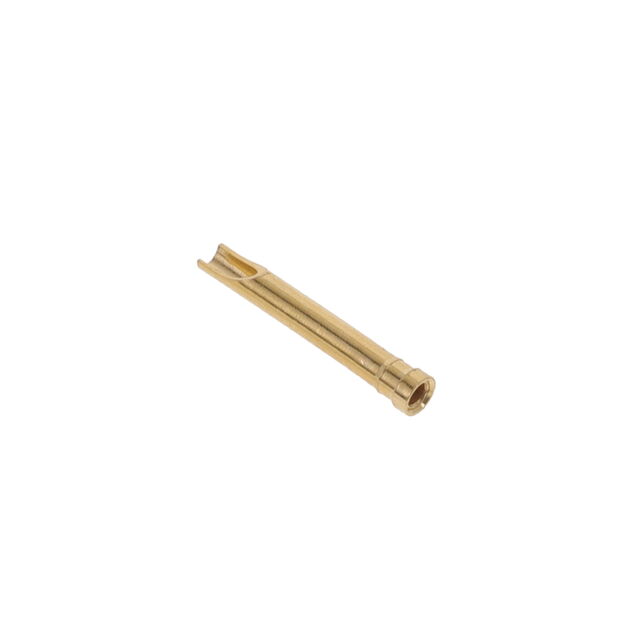

PIN RECEPTACLE SOLDERCUP
Deep-Dive with AI
Search across all available documentation for this part.
1134-0-18-15-56-27-10-0
ActiveMill-Max Manufacturing Corp.
PIN RECEPTACLE SOLDERCUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1134-0-18-15-56-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.037 " |
| Accepts Pin Diameter [Max] | 0.94 mm |
| Accepts Pin Diameter [Min] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.025 " |
| Accepts Square Pin Size [diameter] | 0.64 mm |
| Accepts Square Pin Size [diameter] | 0.025 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Beryllium Nickel |
| Flange Diameter [diameter] | 1.77 mm |
| Flange Diameter [diameter] | 0.07 in |
| Length - Overall [x] | 11.43 mm |
| Length - Overall [x] | 0.45 in |
| Mounting Hole Diameter [diameter] | 0.061 " |
| Mounting Hole Diameter [diameter] | 1.55 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.125 in |
| Pin Hole Diameter [diameter] | 3.18 mm |
| Socket Depth | 0.2 in |
| Socket Depth | 5.08 mm |
| Tail Type | Solder Cup |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.54 | |
Description
General part information
1134-0 Series
Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) Solder Cup Press-Fit
