EV-VND7020AJ
ActiveEVALUATION BOARD, HIGH-SIDE DRIVER
Deep-Dive with AI
Search across all available documentation for this part.
EV-VND7020AJ
ActiveEVALUATION BOARD, HIGH-SIDE DRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EV-VND7020AJ |
|---|---|
| Embedded | False |
| Function | High Side Driver (Internal FET) |
| Primary Attributes | 2-Channel (Dual) |
| Secondary Attributes | On-Board LEDs |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | VND7020AJ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EV-VND7020AJ Series
The board provides you an easy way to connect ST VIPower®M0-7 technology into your existing system.

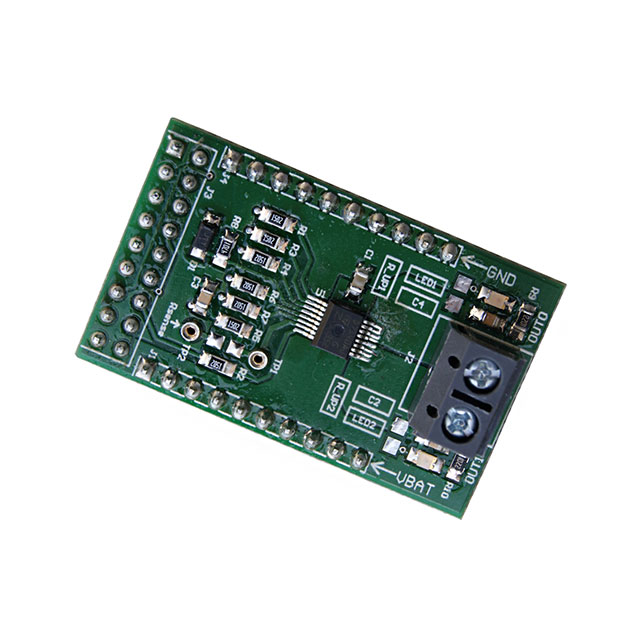

The EV-VND7020AJ evaluation board comes pre-assembled with a VND7020AJ high-side driver.
On board minimum set of electrical components (as for device datasheet recommendation) enables the user to directly connect the load, the power supply and the microcontroller without any additional effort in external component design and connection.
