Specification	ZW-24-12-S-S-665-255

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	30 µin
Length - Overall Pin	1.03 in
Length - Post (Mating)	0.11 in
Length - Stack Height	0.665 in
Length - Tail	0.255 in
Mounting Type	Through Hole
Number of Positions	24 pos
Number of Rows	1
Pitch	0.1 in
Termination	Solder

ZW-24-12 Series

Part	Length - Tail	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Termination	Mounting Type	Number of Rows	Color	Length - Overall Pin	Number of Positions	Pitch	Length - Post (Mating)	Length - Stack Height	Row Spacing
Samtec Inc. ZW-24-12-L-S-360-120	0.12 in	10 µin	Gold	Solder	Through Hole	1	Black	1.03 in	24 pos	0.1 in	0.55 in	0.36 in
Samtec Inc. ZW-24-12-G-D-500-265	0.265 in	10 µin	Gold	Solder	Through Hole	2	Black	1.03 in	48	0.1 in	0.265 in	0.5 in	0.1 in
Samtec Inc. ZW-24-12-G-D-580-180	0.18 in	10 µin	Gold	Solder	Through Hole	2	Black	1.03 in	48	0.1 in	0.27 in	0.58 in	0.1 in
Samtec Inc. ZW-24-12-T-D-630-240	0.24 in		Tin	Solder	Through Hole	2	Black	1.03 in	48	0.1 in	0.16 in	0.63 in	0.1 in

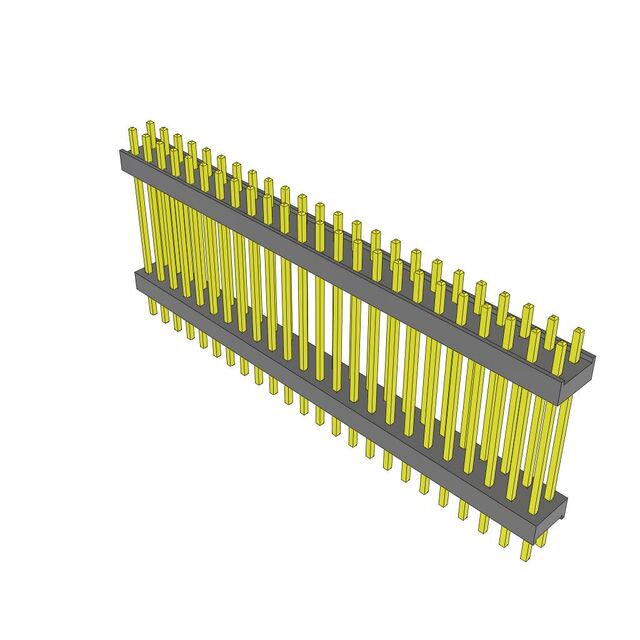

Samtec Inc. ZW-24-12-T-D-762-156	0.156 in		Tin	Solder	Through Hole	2	Black	1.03 in	48	0.1 in	0.112 in	0.762 in	0.1 in
Samtec Inc. ZW-24-12-L-S-460-120	0.12 in	10 µin	Gold	Solder	Through Hole	1	Black	1.03 in	24 pos	0.1 in	0.45 in	0.46 in

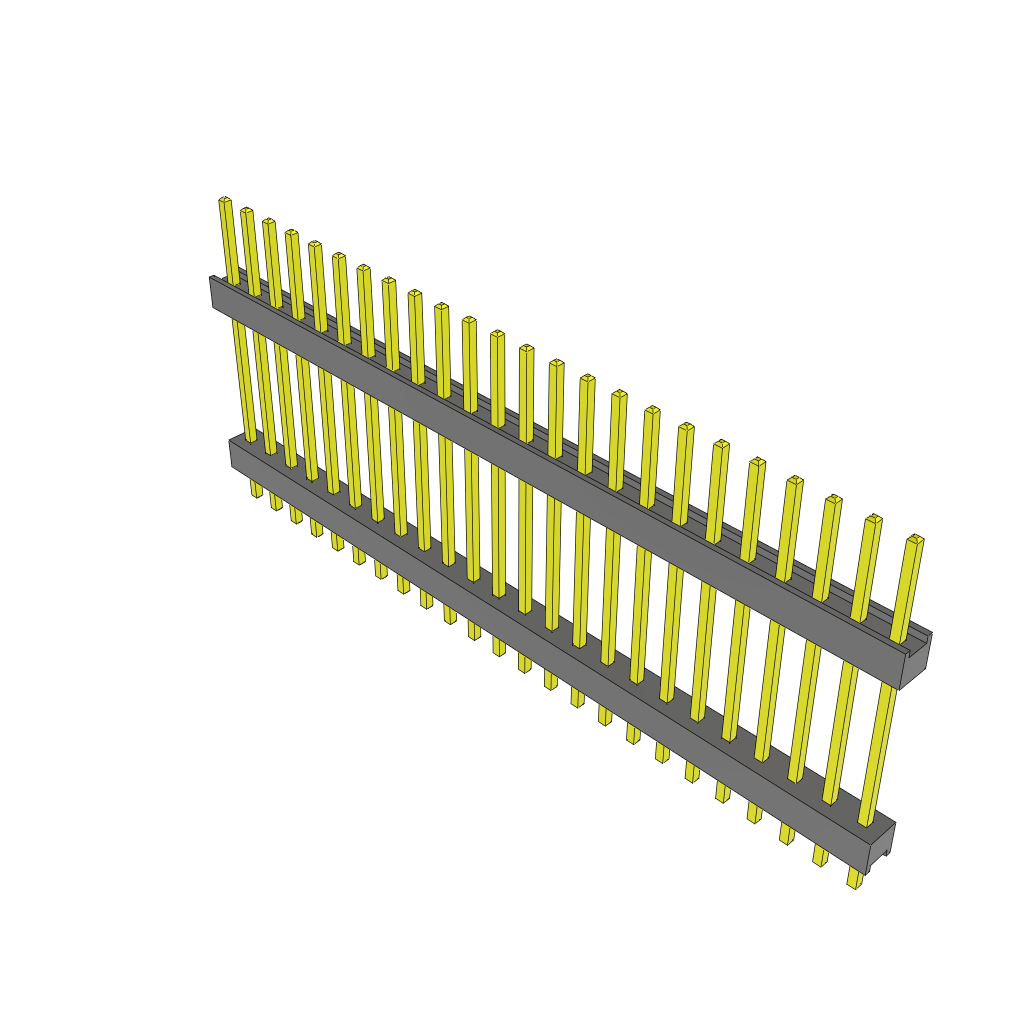

Samtec Inc. ZW-24-12-T-S-665-115	0.115 in		Tin	Solder	Through Hole	1	Black	1.03 in	24 pos	0.1 in	0.25 in	0.665 in
Samtec Inc. ZW-24-12-T-S-875-080	0.08 in		Tin	Solder	Through Hole	1	Black	1.03 in	24 pos	0.1 in	0.075 in	0.875 in
Samtec Inc. ZW-24-12-S-S-665-255	0.255 in	30 µin	Gold	Solder	Through Hole	1	Black	1.03 in	24 pos	0.1 in	0.11 in	0.665 in
Samtec Inc. ZW-24-12-G-D-600-250	0.25 in	10 µin	Gold	Solder	Through Hole	2	Black	1.03 in	48	0.1 in	0.18 in	0.6 in	0.1 in
