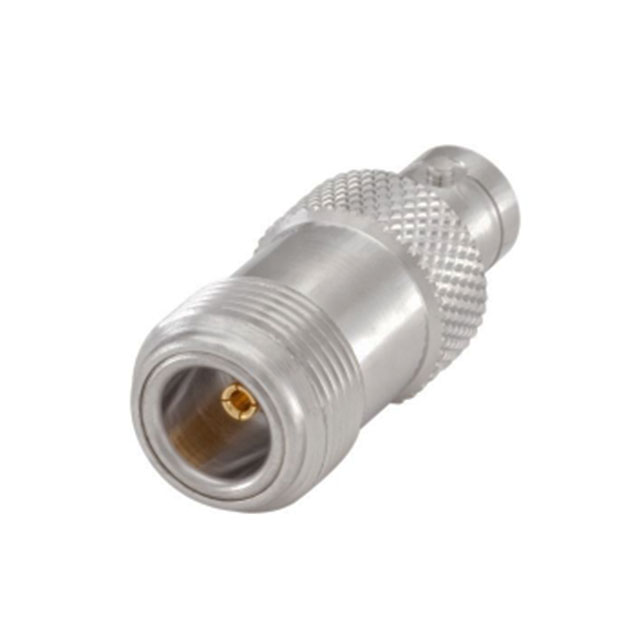

53K151-K00N5

Active

Rosenberger

CONN ADAPT N JACK TO BNC JACK

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT N JACK TO BNC JACK

Technical Specifications

Parameters and characteristics for this part

Specification	53K151-K00N5

Adapter Series	BNC to N
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Mating Cycles	Fastening Type	Center Contact Material	Center Contact Plating	Style	Operating Temperature [Max]	Operating Temperature [Min]	Convert From (Adapter End)	Adapter Series	Adapter Type	Mounting Type	Center Gender	Impedance	Body Material	Dielectric Material	Conversion Type	Frequency - Max [Max]	Convert To (Adapter End)	Body Finish
Rosenberger 53K151-K00N5	500	Bayonet Lock Threaded	Beryllium Copper	Gold	Straight	155 °C	-55 °C	Female Socket N Jack	BNC to N	Jack to Jack	Free Hanging (In-Line)	Female to Female	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)	Between Series	10 GHz	BNC Jack Female Socket	White Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
