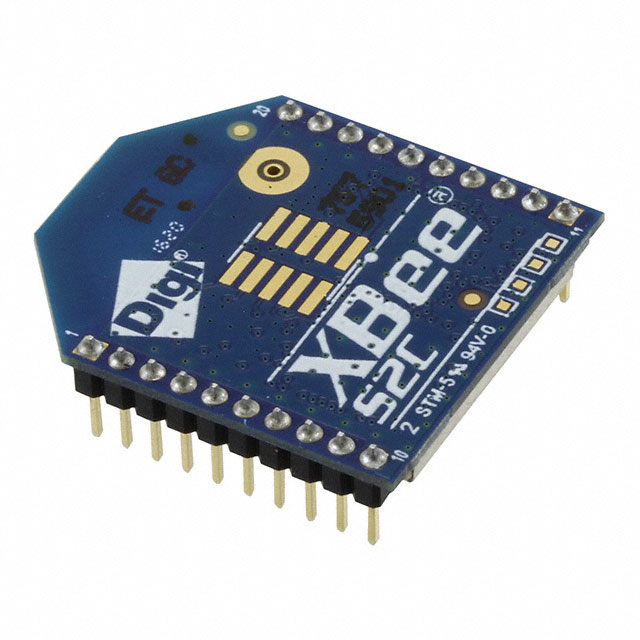

XB24CDMPIT-001

Digi

RF TXRX MOD ISM > 1GHZ TRACE TH

Search across all available documentation for this part.

Digi

RF TXRX MOD ISM > 1GHZ TRACE TH

Technical Specifications

Parameters and characteristics for this part

Part	Antenna Type	Current - Transmitting	Frequency	Modulation	Mounting Type	Sensitivity	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Utilized IC / Part	Serial Interfaces	Current - Receiving	Data Rate	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard
Digi XB24CDMSIT-001	Antenna Not Included RP-SMA	45 mA	2.4 GHz	DSSS	Through Hole	-102 dBm	Module	2.7 V	3.6 V	EM357	SPI UART	31 mA	250 KBd	8 dBm	85 °C	-40 °C	General ISM > 1GHz
Digi XB24CDMUIT-001	Antenna Not Included U.FL	45 mA	2.4 GHz	DSSS	Through Hole	-102 dBm	Module	2.7 V	3.6 V	EM357	SPI UART	31 mA	250 KBd	8 dBm	85 °C	-40 °C	General ISM > 1GHz
Digi XB24CDMPIT-001	Integrated Trace	45 mA	2.4 GHz	DSSS	Through Hole	-102 dBm	Module	2.7 V	3.6 V	EM357	SPI UART	31 mA	250 KBd	8 dBm	85 °C	-40 °C	General ISM > 1GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 29.33

General part information

General ISM > 1GHz Transceiver Module 2.4GHz Integrated, Trace Through Hole
