TR9KG4330T00CIMR6B

Active

GlobTek, Inc.

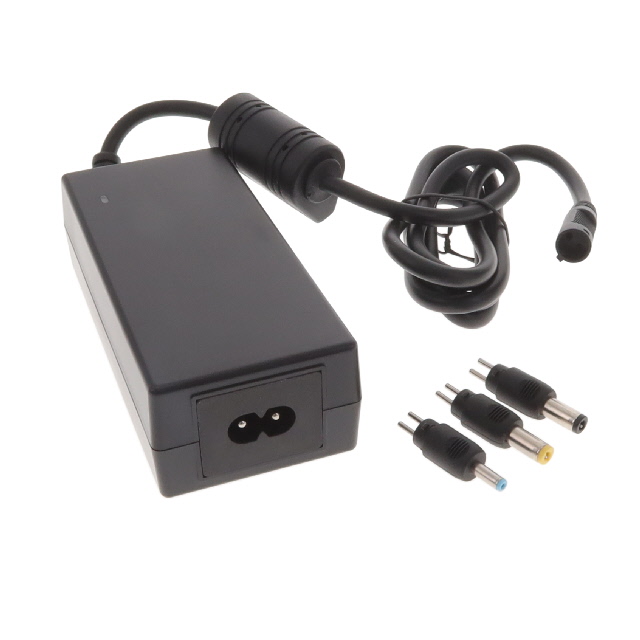

AC/DC DESKTOP ADAPTER 15V 65W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 15V 65W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9KG4330T00CIMR6B

Applications	ITE (Commercial), Medical
Approval Agency	BSMI, CB, cETLus, CE, S-Mark, VCCI, PSE, UKRSepro, EAC, ETL, FCC
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	4.33 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Polarization [custom]	Negative
Polarization [custom]	Positive
Power (Watts)	65 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Standard Number	60601-1-2, 62368-1, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

Part	Efficiency	Input Connector	Standard Number	Input Type	Applications	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	No Load Power Consumption [Max]	Cord Length	Cord Length	Polarization [custom]	Polarization [custom]	Form	Operating Temperature [Min]	Operating Temperature [Max]	Region Utilized	Output Connector	Current - Output (Max) [Max]	Approval Agency
GlobTek, Inc. TR9KG4330T00CIMR6B	CoC Tier 2 Level VI	IEC 320-C8	60601-1-11 60601-1-2 62368-1	Cord	ITE (Commercial) Medical	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	65 W	90 VAC	264 VAC	15 VDC	150 mW	1.2 m	47.2 in	Negative	Positive	Desktop (Class II)	-20 C	40 °C	International	1.3mm x 3.5mm Barrel Plug Kit	4.33 A	BSMI CB CE cETLus EAC ETL FCC PSE S-Mark UKRSepro VCCI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15V 65 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
