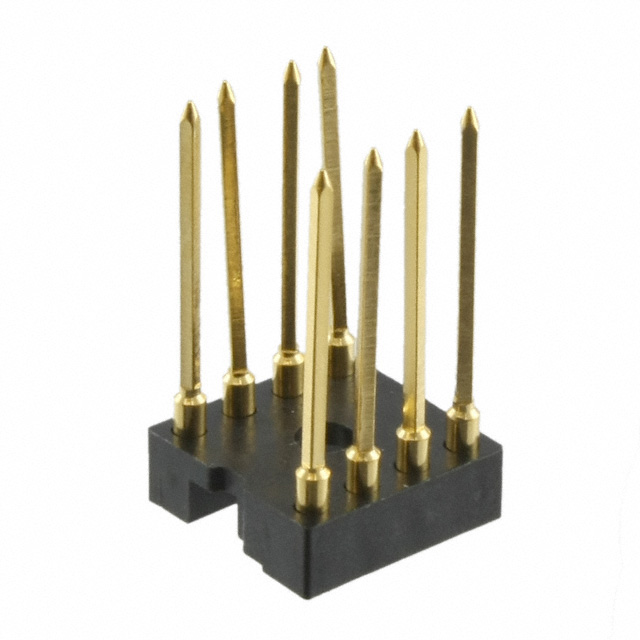

7-1437529-6

Obsolete

TE Connectivity Raychem Cable Protection

CONN IC DIP SOCKET 8POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

CONN IC DIP SOCKET 8POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	7-1437529-6

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material - Mating	Copper Alloy
Contact Material - Post [custom]	Copper Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Closed Frame
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Type	Type	Type	Pitch - Mating	Pitch - Mating	Contact Material - Post [custom]	Features	Number of Positions or Pins (Grid)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Finish - Post	Mounting Type	Housing Material	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish - Mating	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)	Termination Post Length	Termination Post Length
TE Connectivity Raychem Cable Protection 8-1437529-1	0.4 in	10.16 mm	DIP	0.1 in	2.54 mm	Copper Alloy	Closed Frame	8	1.2 µm	47.2 µin	UL94 V-0	Gold	Through Hole	Polyester Thermoplastic	Beryllium Copper	0.51 µm	20 µin	10 mOhm	105 ░C	-55 °C	Solder	Gold	2.54 mm	0.1 in
TE Connectivity Raychem Cable Protection 6-1437529-6	0.4 in	10.16 mm	DIP	0.1 in	2.54 mm	Copper Alloy	Closed Frame		1.2 µm	47.2 µin	UL94 V-0	Gold	Through Hole	Polyester Thermoplastic	Beryllium Copper	0.51 µm	20 µin	10 mOhm	105 ░C	-55 °C	Solder	Gold	2.54 mm	0.1 in	2	6	3
TE Connectivity Raychem Cable Protection 7-1437529-6	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Copper Alloy	Closed Frame	8				Gold	Through Hole		Copper Alloy			10 mOhm	125 °C	-55 °C	Solder	Gold	2.54 mm	0.1 in				3 A	3.18 mm	0.125 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole

Technical documentation and resources

No documents available
