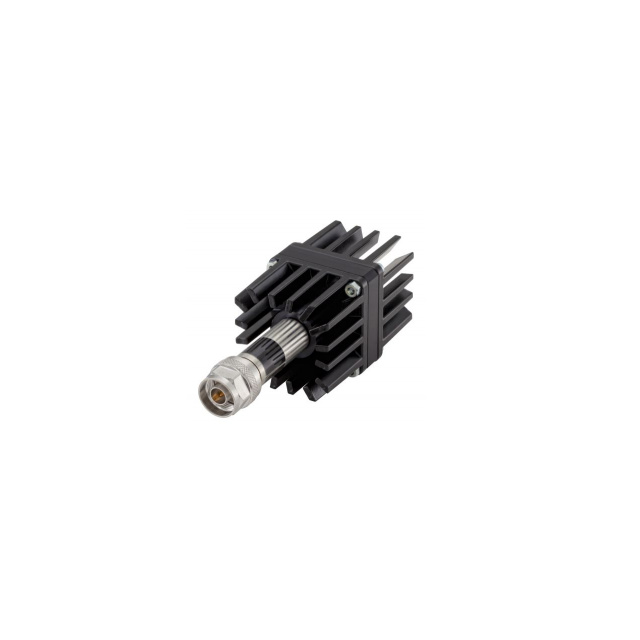

53S17R-040N3

Obsolete

Rosenberger

N TYPE TERMINATOR

Search across all available documentation for this part.

Obsolete

Rosenberger

N TYPE TERMINATOR

Technical Specifications

Parameters and characteristics for this part

Specification	53S17R-040N3

Body Finish	White Bronze
Body Material	Brass
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	5 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Frequency - Max [Max]	Contact Material	Dielectric Material	Contact Finish	Connector Style	Body Finish	Body Material	Connector Type	Mounting Type	Impedance
Rosenberger 53S17R-040N3	5 GHz	Brass	Polytetrafluoroethylene (PTFE)	Gold	N Type	White Bronze	Brass	Male Pin Plug	Cap Free Hanging	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminator Coax Connector Plug, Male Pin N Type 50 Ohms

Technical documentation and resources

No documents available
