25LB15-Q

Active

Grayhill Inc.

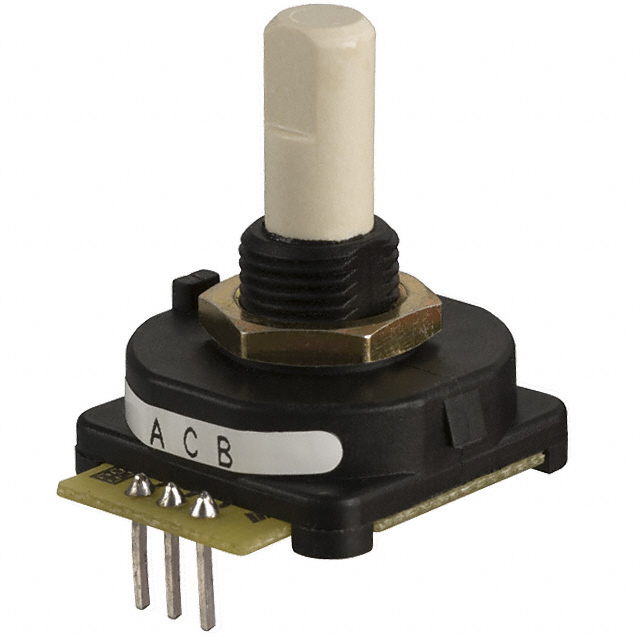

MECHANICAL ENCODER ROTARY INCREMENTAL FLAT 0.042N.M STRAIGHT QUADRATURE DIGITAL SQUARE WAVE 24PPR THROUGH HOLE PC PIN

Search across all available documentation for this part.

Active

Grayhill Inc.

MECHANICAL ENCODER ROTARY INCREMENTAL FLAT 0.042N.M STRAIGHT QUADRATURE DIGITAL SQUARE WAVE 24PPR THROUGH HOLE PC PIN

Technical Specifications

Parameters and characteristics for this part

Specification	25LB15-Q

Actuator Type	0.25
Actuator Type	Flatted End
Built in Switch	False
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	24 per Revolution
Rotational Life (Cycles Min) [Min]	100K
Termination Style	PC Pin

MECHANICAL ENCODER ROTARY INCREMENTAL FLAT 0.042N.M STRAIGHT QUADRATURE DIGITAL SQUARE WAVE 24PPR THROUGH HOLE PC PIN

Part	Actuator Type	Actuator Type	Mounting Type	Output Type	Orientation	Encoder Type	Termination Style	Rotational Life (Cycles Min) [Min]	Pulses per Revolution	Built in Switch	Detent
Grayhill Inc. 25LB15-Q	0.25	Flatted End	Panel, PCB Through Hole	Quadrature (Incremental)	Vertical	Mechanical	PC Pin	100K	24 per Revolution

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 24 Quadrature (Incremental) Vertical
