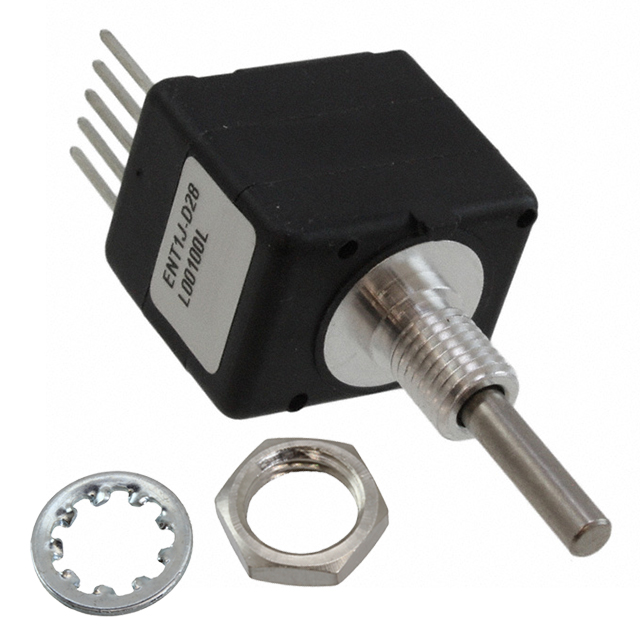

ENT1J-D28-L00100L
ActiveBourns Inc.
OPTICAL ENCODER ROTARY INCREMENTAL PLAIN 0.001N.M STRAIGHT DIGITAL SQUARE WAVE BRACKET MOUNT PC PIN 100CPR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ENT1J-D28-L00100L
ActiveBourns Inc.
OPTICAL ENCODER ROTARY INCREMENTAL PLAIN 0.001N.M STRAIGHT DIGITAL SQUARE WAVE BRACKET MOUNT PC PIN 100CPR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ENT1J-D28-L00100L |
|---|---|
| Actuator Type | 1/8" Dia Round End |
| Built in Switch | False |
| Detent | False |
| Encoder Type | Optical |
| Mounting Type | PCB Through Hole, Panel |
| Orientation | Vertical |
| Output Type | Quadrature (Incremental) |
| Pulses per Revolution | 100 |
| Rotational Life (Cycles Min) | 200M |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 63.37 | |
| 5 | $ 58.57 | |||
| 10 | $ 54.80 | |||
| 25 | $ 50.35 | |||
| 50 | $ 47.10 | |||
| 100 | $ 44.53 | |||
Description
General part information
ENT1J Series
Rotary Encoder Optical 100 Quadrature (Incremental) Vertical
