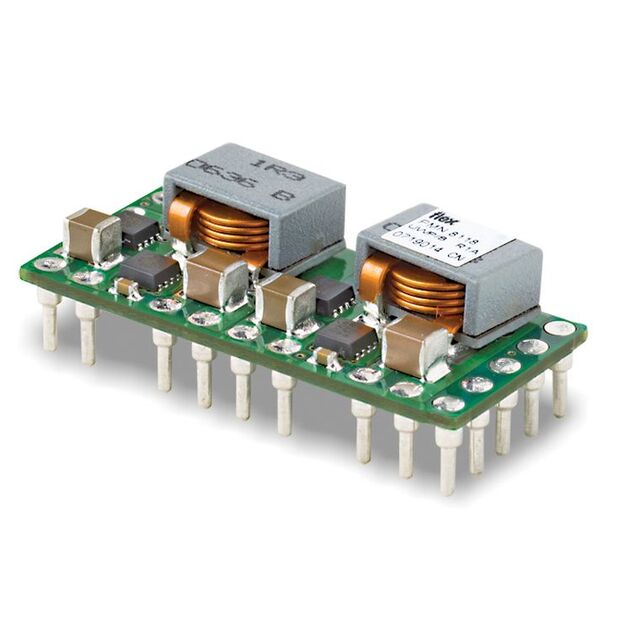

PMN5118UP

Flex Power Modules

POWER MODULE/POWER SUPPLY ROHS

Search across all available documentation for this part.

Flex Power Modules

POWER MODULE/POWER SUPPLY ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	PMN5118UP

Applications	ITE (Commercial)
Approval Agency	CB, UL, IEC, TUV, CSA
Control Features	Active Low, Enable
Current - Output (Max) [Max]	30 A
Efficiency	96.4 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP Module
Power (Watts)	108 W
Size / Dimension [x]	34.8 mm
Size / Dimension [x]	1.37 in
Size / Dimension [y]	15.8 mm
Size / Dimension [y]	0.62 "
Size / Dimension [z]	8.5 mm
Size / Dimension [z]	0.33 in
Standard Number	62368-1
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	3.6 V
Voltage - Output 1 [Min]	0.7 V

Part	Number of Outputs	Voltage - Input (Max) [Max]	Standard Number	Power (Watts)	Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Mounting Type	Voltage - Input (Min) [Min]	Approval Agency	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case	Features	Applications
Flex Power Modules PMN5118USR	1	5.5 V	62368-1	108 W	Non-Isolated PoL Module	8.5 mm	0.33 in	34.8 mm	15.8 mm	1.37 in	0.62 "	30 A	Surface Mount	4.5 V	CB CSA IEC TUV UL	96.4 %	85 °C	-40 °C	Active Low Enable	3.6 V	0.7 V	14-SMD Module	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)
Flex Power Modules PMN5118UP	1	5.5 V	62368-1	108 W	Non-Isolated PoL Module	8.5 mm	0.33 in	34.8 mm	15.8 mm	1.37 in	0.62 "	30 A	Through Hole	4.5 V	CB CSA IEC TUV UL	96.4 %	85 °C	-40 °C	Active Low Enable	3.6 V	0.7 V	14-DIP Module	Adjustable Output Remote On/Off Remote Sense	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	175	$ 20.58
LCSC	N/A	1	$ 0.00

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.7 ~ 3.6V 30A 4.5V - 5.5V Input
