D38999/20WB35SN
UnknownTE Connectivity Raychem Cable Protection

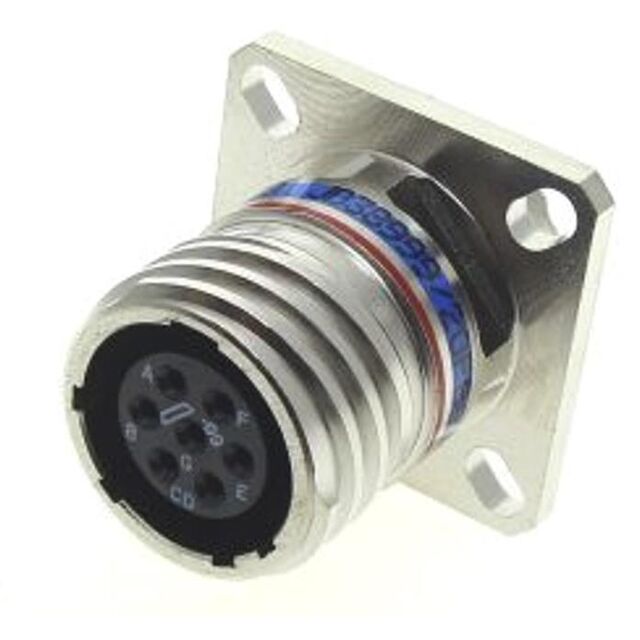

CONN RCPT FMALE 13POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
D38999/20WB35SN
UnknownTE Connectivity Raychem Cable Protection
CONN RCPT FMALE 13POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/20WB35SN |
|---|---|
| Applications | Industrial, Aviation, Communication Systems, Military |
| Color | Olive Drab |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Features | Self Locking |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Mounting Feature | Flange |
| Number of Positions | 13 |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series III |
| Shell Finish | Olive Drab Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert [Max] | 35 |
| Shell Size - Insert [Min] | 11 |
| Shell Size, MIL | B |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 116.87 | |
| 1 | $ 46.94 | |||
| 10 | $ 100.75 | |||
| 10 | $ 40.68 | |||
| 25 | $ 35.90 | |||
| 50 | $ 32.12 | |||
| 100 | $ 28.16 | |||
Description
General part information
D38999/20WB Series
13 Position Circular Connector Receptacle, Female Sockets Crimp
