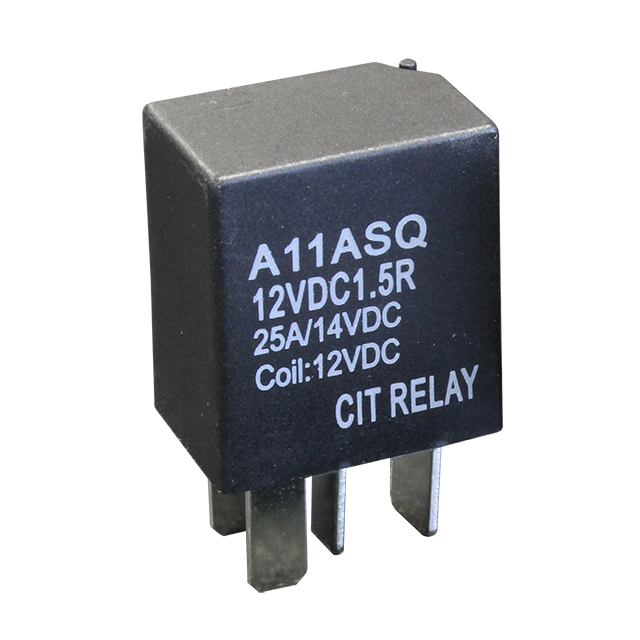

A11ASQ12VDC1.5R
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
A11ASQ12VDC1.5R
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 30A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A11ASQ12VDC1.5R | A11ASQ Series |
|---|---|---|
| Coil Current | 125 mA | 50 - 125 mA |
| Coil Power | 1.5 W | 1.2 - 1.5 W |
| Coil Resistance | 96 Ohms | 96 - 480 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 - 24 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A | 30 A |
| Features | Resistor, Sealed - Fully | Sealed - Fully, Resistor, Diode |
| Mounting Type | Socketable | Socketable |
| Must Operate Voltage | 8.4 VDC | 8.4 - 18 VDC |
| Must Release Voltage | 1.2 VDC | 1.2 - 2.4 VDC |
| Operate Time | 10 ms | 10 ms |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Release Time | 7 ms | 7 ms |
| Switching Voltage | 75 VDC | 75 VDC |
| Termination Style | Plug In, Quick Connect - 0.187" (4.7mm) | Plug In, Quick Connect - 0.187" (4.7mm) |
A11ASQ Series
75V@DC 30A 12V ONE NORMALLY OPEN: 1A (SPST-NO) SOCKETABLE AUTOMOTIVE RELAYS ROHS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Coil Voltage | Features | Termination Style | Contact Rating (Current) | Operate Time | Must Operate Voltage | Coil Type | Release Time | Mounting Type | Contact Form | Coil Current | Switching Voltage | Coil Power | Coil Resistance | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CIT Relay and Switch A11ASQ12VDC1.5 | 85 °C | -40 °C | 1.2 VDC | 12 VDC | Sealed - Fully | Plug In, Quick Connect - 0.187" (4.7mm) | 30 A | 10 ms | 8.4 VDC | Non Latching | 7 ms | Socketable | SPST-NO (1 Form A) | 125 mA | 75 VDC | 1.5 W | 96 Ohms | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch A11ASQ12VDC1.5R | 85 °C | -40 °C | 1.2 VDC | 12 VDC | Resistor, Sealed - Fully | Plug In, Quick Connect - 0.187" (4.7mm) | 30 A | 10 ms | 8.4 VDC | Non Latching | 7 ms | Socketable | SPST-NO (1 Form A) | 125 mA | 75 VDC | 1.5 W | 96 Ohms | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch A11ASQ24VDC1.2 | 85 °C | -40 °C | 2.4 VDC | 24 VDC | Sealed - Fully | Plug In, Quick Connect - 0.187" (4.7mm) | 30 A | 10 ms | 18 VDC | Non Latching | 7 ms | Socketable | SPST-NO (1 Form A) | 50 mA | 75 VDC | 1.2 W | 480 Ohms | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch A11ASQ24VDC1.2D | 85 °C | -40 °C | 2.4 VDC | 24 VDC | Diode, Sealed - Fully | Plug In, Quick Connect - 0.187" (4.7mm) | 30 A | 10 ms | 18 VDC | Non Latching | 7 ms | Socketable | SPST-NO (1 Form A) | 50 mA | 75 VDC | 1.2 W | 480 Ohms | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch A11ASQ24VDC1.5R | 85 °C | -40 °C | 2.4 VDC | 24 VDC | Resistor, Sealed - Fully | Plug In, Quick Connect - 0.187" (4.7mm) | 30 A | 10 ms | 18 VDC | Non Latching | 7 ms | Socketable | SPST-NO (1 Form A) | 62.5 mA | 75 VDC | 1.5 W | 384 Ohms | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch A11ASQ24VDC1.2R | 85 °C | -40 °C | 2.4 VDC | 24 VDC | Resistor, Sealed - Fully | Plug In, Quick Connect - 0.187" (4.7mm) | 30 A | 10 ms | 18 VDC | Non Latching | 7 ms | Socketable | SPST-NO (1 Form A) | 50 mA | 75 VDC | 1.2 W | 480 Ohms | Silver Tin Oxide (AgSnO) |
CIT Relay and Switch A11ASQ24VDC1.5 | 85 °C | -40 °C | 2.4 VDC | 24 VDC | Sealed - Fully | Plug In, Quick Connect - 0.187" (4.7mm) | 30 A | 10 ms | 18 VDC | Non Latching | 7 ms | Socketable | SPST-NO (1 Form A) | 62.5 mA | 75 VDC | 1.5 W | 384 Ohms | Silver Tin Oxide (AgSnO) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.72 | |
| 10 | $ 1.54 | |||
| 25 | $ 1.47 | |||
| 50 | $ 1.42 | |||
| 100 | $ 1.37 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.26 | |||
| 1000 | $ 1.22 | |||
| 5000 | $ 1.12 | |||
Description
General part information
A11ASQ Series
RELAY AUTOMOTIVE SPST 30A 12V
