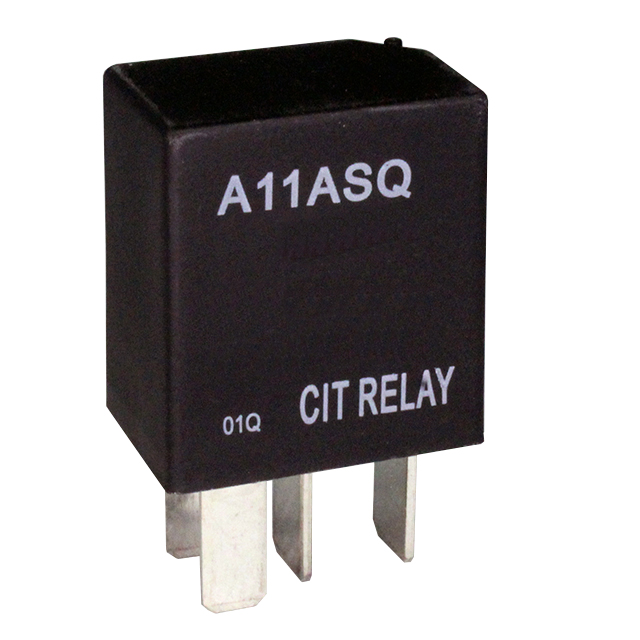

A11ASQ24VDC1.2R

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Relays

A11ASQ24VDC1.2R

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 30A 24V

Deep-Dive with AI

DocumentsDatasheet A Series Relays

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.09
		10	$ 1.02
		25	$ 0.91
		50	$ 0.86
		100	$ 0.82
		250	$ 0.80

Description

General part information

A11ASQ Series

RELAY AUTOMOTIVE SPST 30A 24V

Documents

Technical documentation and resources

Datasheet

A Series Relays

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A11ASQ24VDC1.2R	A11ASQ Series

Coil Current	50 mA	50 - 125 mA
Coil Power	1.2 W	1.2 - 1.5 W
Coil Resistance	480 Ohms	96 - 480 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	30 A	30 A
Features	Resistor, Sealed - Fully	Sealed - Fully, Resistor, Diode
Mounting Type	Socketable	Socketable
Must Operate Voltage	18 VDC	8.4 - 18 VDC
Must Release Voltage	2.4 VDC	1.2 - 2.4 VDC
Operate Time	10 ms	10 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	7 ms	7 ms
Switching Voltage	75 VDC	75 VDC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)	Plug In, Quick Connect - 0.187" (4.7mm)

A11ASQ Series

75V@DC 30A 12V ONE NORMALLY OPEN: 1A (SPST-NO) SOCKETABLE AUTOMOTIVE RELAYS ROHS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Voltage	Features	Termination Style	Contact Rating (Current)	Operate Time	Must Operate Voltage	Coil Type	Release Time	Mounting Type	Contact Form	Coil Current	Switching Voltage	Coil Power	Coil Resistance	Contact Material
CIT Relay and Switch A11ASQ12VDC1.5	85 °C	-40 °C	1.2 VDC	12 VDC	Sealed - Fully	Plug In, Quick Connect - 0.187" (4.7mm)	30 A	10 ms	8.4 VDC	Non Latching	7 ms	Socketable	SPST-NO (1 Form A)	125 mA	75 VDC	1.5 W	96 Ohms	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A11ASQ12VDC1.5R	85 °C	-40 °C	1.2 VDC	12 VDC	Resistor, Sealed - Fully	Plug In, Quick Connect - 0.187" (4.7mm)	30 A	10 ms	8.4 VDC	Non Latching	7 ms	Socketable	SPST-NO (1 Form A)	125 mA	75 VDC	1.5 W	96 Ohms	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A11ASQ24VDC1.2	85 °C	-40 °C	2.4 VDC	24 VDC	Sealed - Fully	Plug In, Quick Connect - 0.187" (4.7mm)	30 A	10 ms	18 VDC	Non Latching	7 ms	Socketable	SPST-NO (1 Form A)	50 mA	75 VDC	1.2 W	480 Ohms	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A11ASQ24VDC1.2D	85 °C	-40 °C	2.4 VDC	24 VDC	Diode, Sealed - Fully	Plug In, Quick Connect - 0.187" (4.7mm)	30 A	10 ms	18 VDC	Non Latching	7 ms	Socketable	SPST-NO (1 Form A)	50 mA	75 VDC	1.2 W	480 Ohms	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A11ASQ24VDC1.5R	85 °C	-40 °C	2.4 VDC	24 VDC	Resistor, Sealed - Fully	Plug In, Quick Connect - 0.187" (4.7mm)	30 A	10 ms	18 VDC	Non Latching	7 ms	Socketable	SPST-NO (1 Form A)	62.5 mA	75 VDC	1.5 W	384 Ohms	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A11ASQ24VDC1.2R	85 °C	-40 °C	2.4 VDC	24 VDC	Resistor, Sealed - Fully	Plug In, Quick Connect - 0.187" (4.7mm)	30 A	10 ms	18 VDC	Non Latching	7 ms	Socketable	SPST-NO (1 Form A)	50 mA	75 VDC	1.2 W	480 Ohms	Silver Tin Oxide (AgSnO)
CIT Relay and Switch A11ASQ24VDC1.5	85 °C	-40 °C	2.4 VDC	24 VDC	Sealed - Fully	Plug In, Quick Connect - 0.187" (4.7mm)	30 A	10 ms	18 VDC	Non Latching	7 ms	Socketable	SPST-NO (1 Form A)	62.5 mA	75 VDC	1.5 W	384 Ohms	Silver Tin Oxide (AgSnO)
