C2516A.41.10

Active

Prysmian Group

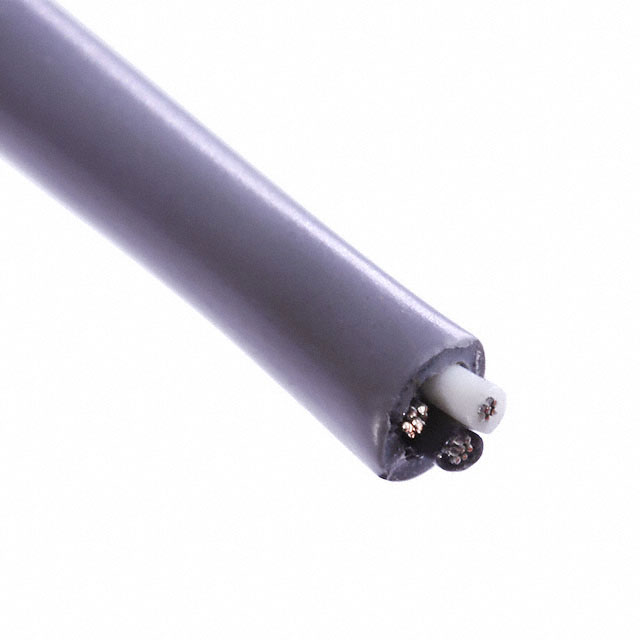

CABLE 2COND 22AWG GRAY SHLD 50'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 22AWG GRAY SHLD 50'

Technical Specifications

Parameters and characteristics for this part

Specification	C2516A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m, 15.24 m
Length [x]	50 ft, 100 ft
Length [x]	30.5 m
Number of Conductors	2
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Conductor Material	Jacket (Insulation) Material	Voltage	Conductor Insulation	Features	Jacket Color	Cable Type	Length [x]	Length [x]	Shield Coverage	Shield Type	Number of Conductors	Shield Material	Length	Length
Prysmian Group C2516A.25.10	Communication Control	0.02 in	0.508 mm	7	30 AWG	22 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	300 V	Polypropylene (PP)	Drain Wire	Gray	Multi-Conductor	500 '	152.4 m	100 %	Foil	2	Flexfoil®
Prysmian Group C2516A.41.10	Communication Control	0.02 in	0.508 mm	7	30 AWG	22 AWG	Copper Tinned	Poly-Vinyl Chloride (PVC)	300 V	Polypropylene (PP)	Drain Wire	Gray	Multi-Conductor	50 ft 100 ft	30.5 m	100 %	Foil	2	Flexfoil®	1000 ft	15.24 m 304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Gray 22 AWG Foil 50.00' (15.24m)
