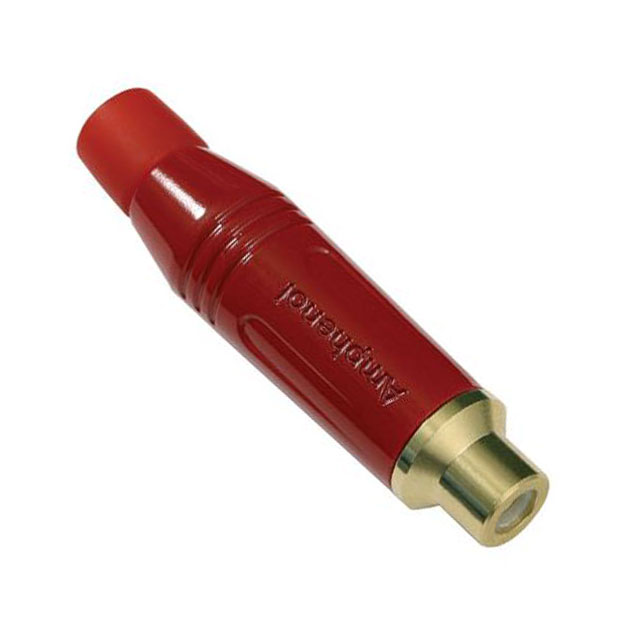

ACJR-RED

Active

AMPHENOL AUDIO

CONN RCA JACK RED

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN RCA JACK RED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phone Jack Mono Connector Solder Cup, Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ACJR-RED	ACJR Series

Body Color	Red	Red, White, Blue, Silver, Black, Green
Body Material	Zinc Alloy	Zinc Alloy
Connector Type	Phone Jack	Phone Jack
Contact Material - Plating [custom]	Gold	Gold
Gender	Female	Female
Housing Material	Plastic	Plastic
Internal Switch(s)	False	False
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2	2
Number of Positions/Contacts [custom]	2	2
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Shielding	Unshielded	Unshielded
Signal Lines	Mono	Mono
Termination	Solder, Solder Cup	Solder, Solder Cup

CONN RCA JACK RED

Part	Mounting Type	Body Color	Signal Lines	Contact Material - Plating [custom]	Connector Type	Housing Material	Termination	Shielding	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Material
AMPHENOL AUDIO ACJR-RED	Free Hanging (In-Line)	Red	Mono	Gold	Phone Jack	Plastic	Solder, Solder Cup	Unshielded	Female	-25 °C	75 ░C	2	2	Zinc Alloy
AMPHENOL AUDIO ACJR-WHT	Free Hanging (In-Line)	White	Mono	Gold	Phone Jack	Plastic	Solder, Solder Cup	Unshielded	Female	-25 °C	75 ░C	2	2	Zinc Alloy
AMPHENOL AUDIO ACJR-BLU	Free Hanging (In-Line)	Blue	Mono	Gold	Phone Jack	Plastic	Solder, Solder Cup	Unshielded	Female	-25 °C	75 ░C	2	2	Zinc Alloy
AMPHENOL AUDIO ACJR-BLK	Free Hanging (In-Line)	Black, Silver	Mono	Gold	Phone Jack	Plastic	Solder, Solder Cup	Unshielded	Female	-25 °C	75 ░C	2	2	Zinc Alloy
AMPHENOL AUDIO ACJR-GRN	Free Hanging (In-Line)	Green	Mono	Gold	Phone Jack	Plastic	Solder, Solder Cup	Unshielded	Female	-25 °C	75 ░C	2	2	Zinc Alloy
