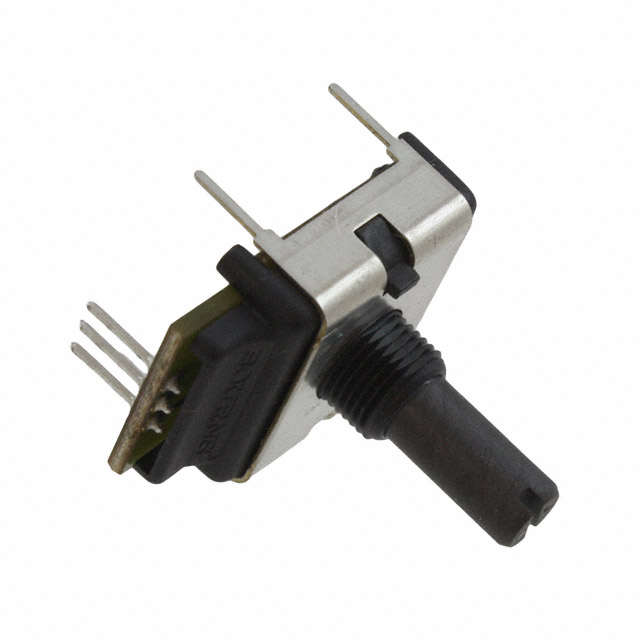

ECW0J-B24-BD0009L

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 9PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 9PPR

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Encoder Type	Termination Style	Pulses per Revolution	Rotational Life (Cycles Min)	Output Type	Actuator Type	Orientation	Actuator Type
Bourns Inc. ECW0J-R24-BC0006L	Panel PCB Through Hole	Mechanical	PC Pin	6	200K	Quadrature (Incremental)	6mm Dia Slotted End	Vertical
Bourns Inc. ECW0J-B24-CC0006L	Panel PCB Through Hole	Mechanical	PC Pin	6	200K	Quadrature (Incremental)	Flatted End	Vertical	0.25
Bourns Inc. ECW0J-B24-BD0009L	Panel PCB Through Hole	Mechanical	PC Pin	9	200K	Quadrature (Incremental)	Flatted End	Vertical	0.25
Bourns Inc. ECW0J-B24-BC0006L	Panel PCB Through Hole	Mechanical	PC Pin	6	200K	Quadrature (Incremental)	Flatted End	Vertical	0.25
Bourns Inc. ECW0J-B24-AC0006L	Panel PCB Through Hole	Mechanical	PC Pin	6	200K	Quadrature (Incremental)	Flatted End	Vertical	0.25
Bourns Inc. ECW0J-B24-HC0006L	Panel PCB Through Hole	Mechanical	PC Pin	6	200K	Quadrature (Incremental)	1/4" Dia Slotted End	Vertical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 9 Quadrature (Incremental) Vertical

Technical documentation and resources
