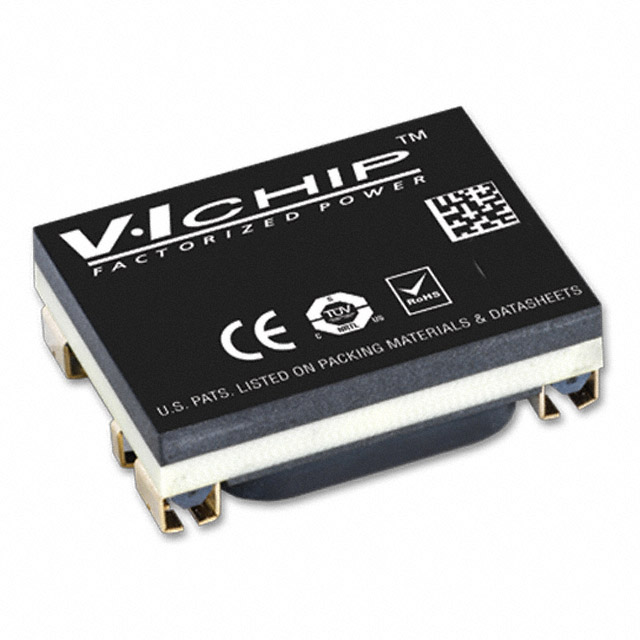

VTM48EH120M010A00

Obsolete

Vicor Corporation

DC DC CONVERTER 12V 120W

Search across all available documentation for this part.

Obsolete

Vicor Corporation

DC DC CONVERTER 12V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	VTM48EH120M010A00

Applications	ITE (Commercial)
Current - Output (Max) [Max]	10 A
Efficiency	95 %
Features	OVP, OTP, OCP, Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Module
Power (Watts)	120 W
Size / Dimension [x]	22 mm
Size / Dimension [x]	0.87 in
Size / Dimension [y]	0.65 in
Size / Dimension [y]	16.5 mm
Size / Dimension [z]	6.7 mm
Size / Dimension [z]	0.26 "
Type	Voltage Transformation Module
Voltage - Input (Min) [Min]	26 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

DC DC CONVERTER 12V 120W

Part	Type	Efficiency	Applications	Current - Output (Max) [Max]	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Features	Voltage - Isolation	Mounting Type	Number of Outputs	Power (Watts)	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]
Vicor Corporation VTM48EH120M010A00	Voltage Transformation Module	95 %	ITE (Commercial)	10 A	12 V	6.7 mm	22 mm	0.65 in	0.87 in	16.5 mm	0.26 "	Module	OCP, OTP, OVP, Remote On/Off, SCP	2250 VDC	Surface Mount	1	120 W	26 V	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Voltage Transformation Module DC DC Converter 1 Output 12V 10A 26V - 55V Input
