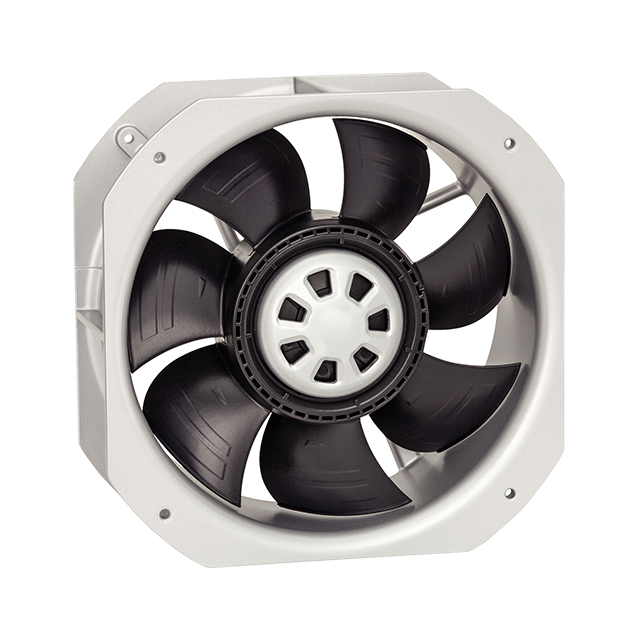

Specification	W3G200-HD23-10

Air Flow	623 CFM
Approval Agency	cURus, VDE, CE
Bearing Type	Ball
Current Rating	1 A
Fan Type	Tubeaxial
Features	Electronic Commutation (EC)
Ingress Protection Description	Water Resistant, Dust Protected
Ingress Protection IP Rating	IP54
Material - Blade	Polypropylene, PP
Material - Frame	Aluminum
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-25 °C
Power (Watts)	65 W
RPM	2900 RPM
Size / Dimension Height	225 mm
Size / Dimension Length	225 mm
Size / Dimension Shape	Square
Static Pressure	0.38 in H2O
Termination	Terminal Block
Voltage - Rated	115 V
Voltage Range (Max)	130 V
Voltage Range (Min)	100 VAC
Weight	3.7 lbs
Width	80 mm

W3G200 Series

Part	Weight	Voltage - Rated	Operating Temperature (Min)	Operating Temperature (Max)	Fan Type	Ingress Protection IP Rating	Ingress Protection Description	Bearing Type	Power (Watts)	Features	Width	Approval Agency	RPM	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Height	Termination	Static Pressure	Air Flow	Voltage Range (Min)	Voltage Range (Max)	Material - Frame	Material - Blade	Current Rating
ebm-papst Inc. W3G200-HD23-10	3.7 lbs	115 V	-25 °C	60 °C	Tubeaxial	IP54	Dust Protected Water Resistant	Ball	65 W	Electronic Commutation (EC)	80 mm	CE cURus VDE	2900 RPM	Square	225 mm	225 mm	Terminal Block	0.38 in H2O	623 CFM	100 VAC	130 V	Aluminum	Polypropylene PP	1 A
