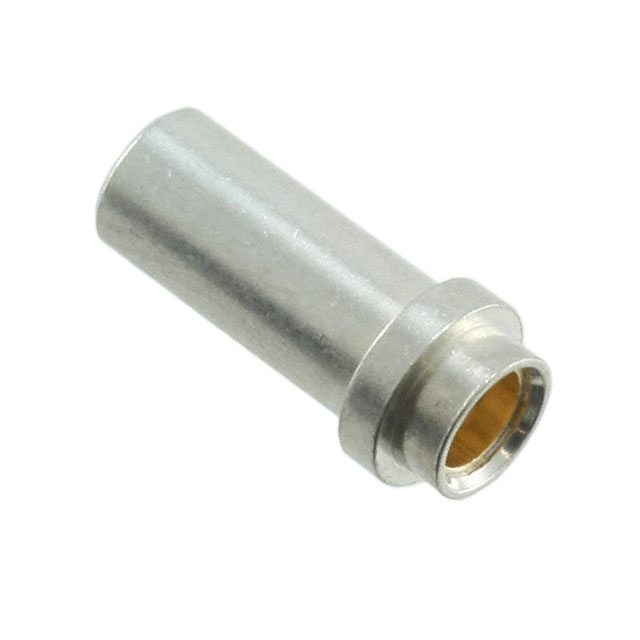

H3490-01

Active

Harwin Inc.

PCB SOCKET, 1POS, GOLD, TH ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

PCB SOCKET, 1POS, GOLD, TH ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H3490-01

Accepts Pin Diameter [Max] [diameter]	2.3 mm
Accepts Pin Diameter [Max] [diameter]	0.091 in
Accepts Pin Diameter [Min] [diameter]	2 mm
Accepts Pin Diameter [Min] [diameter]	0.079 in
Contact Finish	Gold
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.187 in
Flange Diameter [diameter]	4.75 mm
Insertion Force [Max]	6 N
Insertion Force [Min]	2.99 N
Length - Overall [x]	10.59 mm
Length - Overall [x]	0.417 "
Mounting Hole Diameter	3.77 mm, 3.66 mm
Mounting Hole Diameter [Max]	0.148 "
Mounting Hole Diameter [Min]	0.144 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.161 in
Socket Depth	4.09 mm
Tail Type	No Tail
Termination	Solder

Part	Length - Overall [x]	Length - Overall [x]	Insertion Force [Max]	Insertion Force [Min]	Socket Depth	Socket Depth	Termination	Mounting Hole Diameter	Mounting Hole Diameter [Max]	Mounting Hole Diameter [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Contact Finish	Contact Material	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]
Harwin Inc. H3490-01	10.59 mm	0.417 "	6 N	2.99 N	0.161 in	4.09 mm	Solder	3.66 mm 3.77 mm	0.148 "	0.144 "	-55 °C	125 °C	2 mm	0.079 in	2.3 mm	0.091 in	Gold	Beryllium Copper	No Tail	0.187 in	4.75 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.079" ~ 0.091" (2.00mm ~ 2.30mm) No Tail Solder
