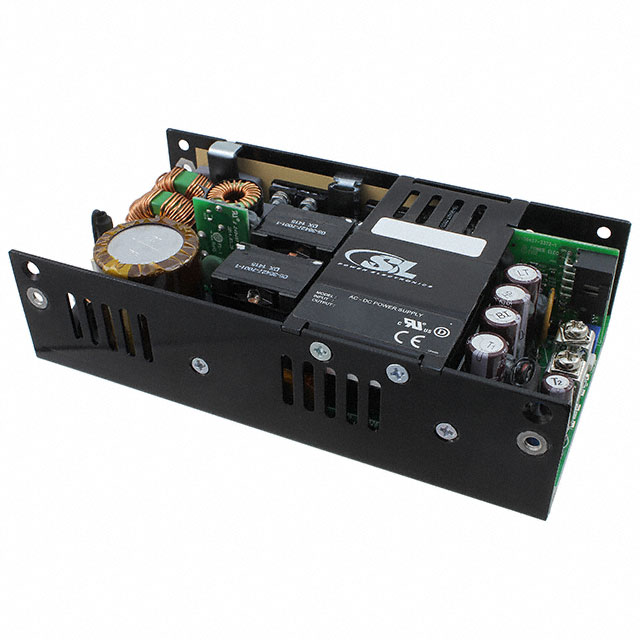

TU425S56E

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 56V 300W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 56V 300W

Technical Specifications

Parameters and characteristics for this part

Specification	TU425S56E

Applications	ITE (Commercial)
Approval Agency	cURus, DEMKO, CE
Current - Output 1	5.1 A
Efficiency	90 %
Features	Remote Sense, DC Input Capable, Standby Output, Universal Input, Load Sharing
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	425 W, 300 W
Size / Dimension [x]	157.4 mm
Size / Dimension [x]	6.2 in
Size / Dimension [y]	3.3 in
Size / Dimension [y]	83.8 mm
Size / Dimension [z]	41.1 mm
Size / Dimension [z]	1.62 in
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	56 V

AC/DC CONVERTER 56V 300W

Part	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Power (Watts)	Voltage - Output 1	Minimum Load Required	Applications	Number of Outputs	Approval Agency	Type	Mounting Type	Features
SL POWER / Advanced Energy TU425S56E	4000 V	3.3 in	157.4 mm	6.2 in	41.1 mm	83.8 mm	1.62 in	-10 °C	70 °C	5.1 A	90 VAC	264 VAC	90 %	300 W, 425 W	56 V		ITE (Commercial)	1	CE, cURus, DEMKO	Open Frame	Chassis Mount	DC Input Capable, Load Sharing, Remote Sense, Standby Output, Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	32	$ 258.05
