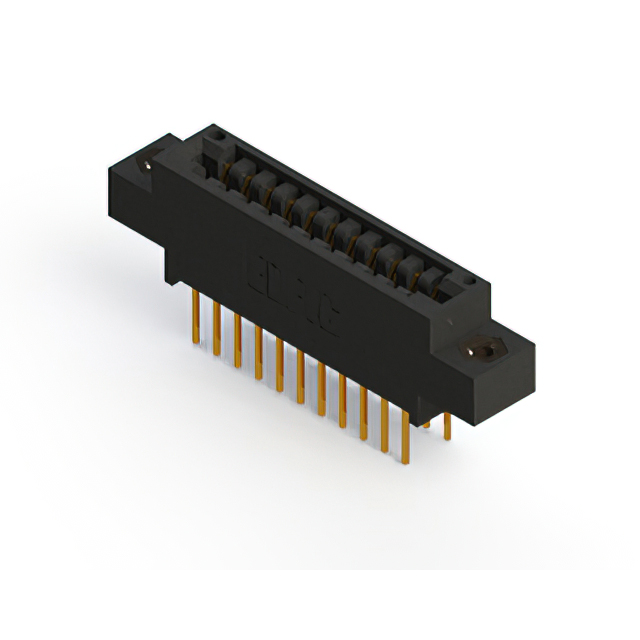

896-022-522-808

Active

EDAC Inc.

CONN EDGE DUAL FMALE 22POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-022-522-808

Active

EDAC Inc.

CONN EDGE DUAL FMALE 22POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	896-022-522-808

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	22 positions
Number of Positions/Bay/Row [custom]	11
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

896-022 Series

...

Part	Color	Read Out	Contact Material	Termination Rows	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Type	Pitch [x]	Pitch [x]	Gender	Card Type	Number of Positions/Bay/Row [custom]	Contact Finish	Termination	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature	Number of Rows	Features	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 896-022-541-108	Black	Single	Copper Alloy	1	125 °C	-40 °C	Through Hole	Cantilever	0.125 in	3.18 mm	Female	Non Specified - Single Edge	22	Gold	Wire Wrap	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Flush Mount Threaded Insert Top Opening	1
EDAC Inc. 896-022-555-807	Black	Dual	Copper Alloy	2	125 °C	-40 °C	Board Edge Straddle Mount	Cantilever	0.125 in	3.18 mm	Female	Non Specified - Dual Edge	11	Gold	Solder Eyelet(s)	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	M3 Threaded Insert Top Mount Opening	2	Card Extender
EDAC Inc. 896-022-541-802	Black	Dual	Copper Alloy	2	125 °C	-40 °C	Through Hole	Cantilever	0.125 in	3.18 mm	Female	Non Specified - Dual Edge	11	Gold	Wire Wrap	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in		2		3.25 mm	0.128 in
EDAC Inc. 896-022-522-808	Black	Dual	Copper Alloy	2	125 °C	-40 °C	Through Hole	Cantilever	0.125 in	3.18 mm	Female	Non Specified - Dual Edge	11	Gold	Solder	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Threaded Insert Top Mount Opening	2
EDAC Inc. 896-022-541-207	Black	Dual	Copper Alloy	2	125 °C	-40 °C	Through Hole	Cantilever	0.125 in	3.18 mm	Female	Non Specified - Dual Edge	11	Gold	Wire Wrap	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount M3 Threaded Insert Top Opening	2
EDAC Inc. 896-022-559-202	Black	Dual	Copper Alloy	2	125 °C	-40 °C	Through Hole Right Angle	Cantilever	0.125 in	3.18 mm	Female	Non Specified - Dual Edge	11	Gold	Solder	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Flush Mount Top Opening Unthreaded	2				3.25 mm	0.128 "
EDAC Inc. 896-022-541-808	Black	Dual	Copper Alloy	2	125 °C	-40 °C	Through Hole	Cantilever	0.125 in	3.18 mm	Female	Non Specified - Dual Edge	11	Gold	Wire Wrap	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	4-40 Threaded Insert Top Mount Opening	2
EDAC Inc. 896-022-558-603	Black	Single	Copper Alloy	1	125 °C	-40 °C	Through Hole Right Angle	Cantilever	0.125 in	3.18 mm	Female	Non Specified - Single Edge	22	Gold	Solder	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	Floating Bobbin Top Mount Opening	1				2.95 mm	0.116 in
EDAC Inc. 896-022-526-201	Black	Dual	Copper Alloy	2	125 °C	-40 °C	Through Hole	Cantilever	0.125 in	3.18 mm	Female	Non Specified - Dual Edge	11	Gold	Solder	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in		2
EDAC Inc. 896-022-558-607	Black	Single	Copper Alloy	1	125 °C	-40 °C	Through Hole Right Angle	Cantilever	0.125 in	3.18 mm	Female	Non Specified - Single Edge	22	Gold	Solder	Polyphenylene Sulfide (PPS)	10 Áin	0.25 Ám	22 positions	1.37 mm	0.054 "	1.78 mm	0.07 in	M3 Threaded Insert Top Mount Opening	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 53.52
Newark	Each	1	$ 64.23
		100	$ 42.27
		250	$ 35.73
		500	$ 32.59
		1000	$ 26.88

Description

General part information

896-022 Series

22 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
