Q12RB6LV

Active

BANNER ENGINEERING

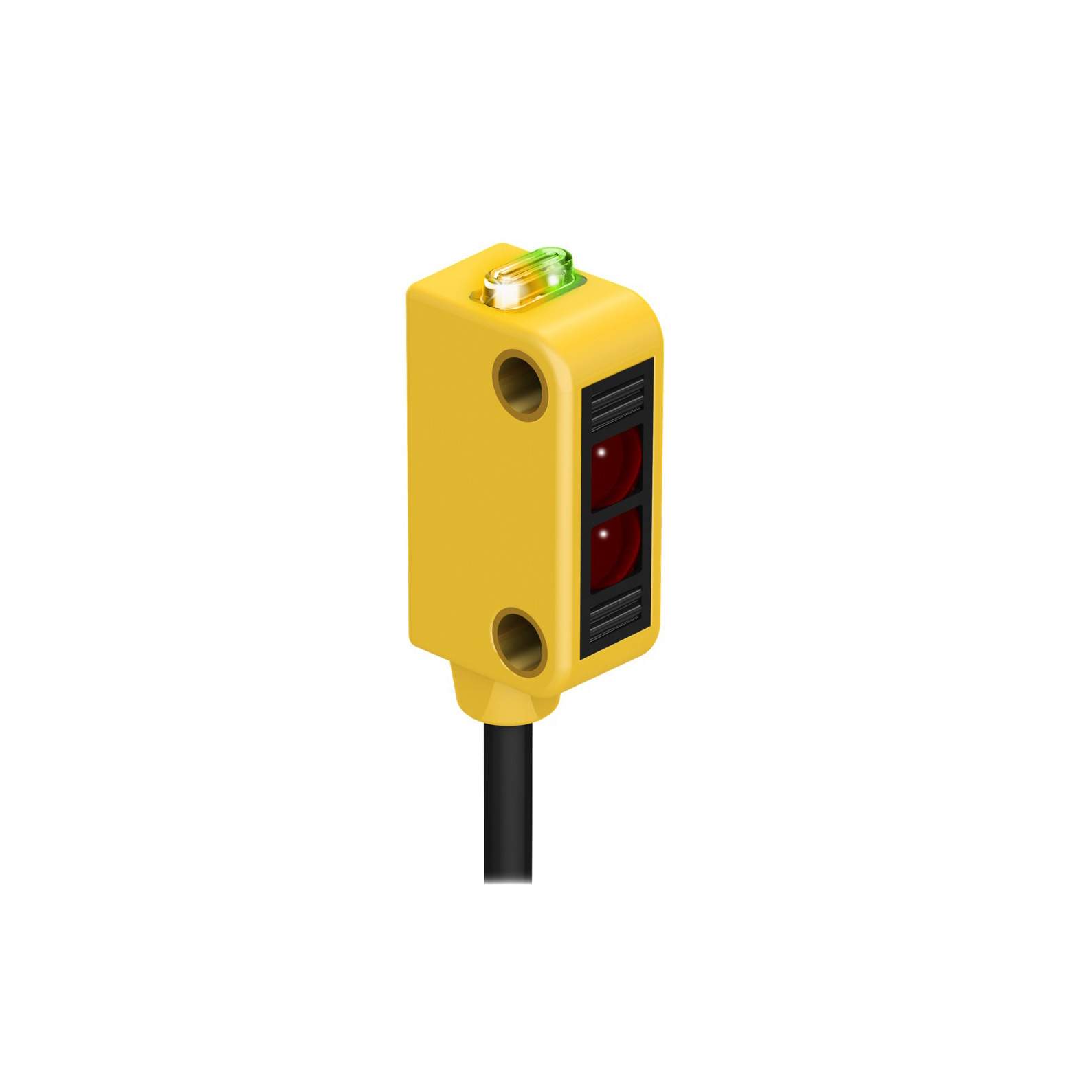

PHOTOELECTRIC SENSOR, Q12 SERIES, WORLD-BEAM, RETROREFLECTIVE, 1.5M, NPN / PNP, DARK ON, PRE-WIRED

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, Q12 SERIES, WORLD-BEAM, RETROREFLECTIVE, 1.5M, NPN / PNP, DARK ON, PRE-WIRED

Technical Specifications

Parameters and characteristics for this part

Specification	Q12RB6LV

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IEC IP67
Light Source	Red
Light Source	640 nm
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Output Configuration	Dark-On, NPN/PNP
Response Time	700 µs
Sensing Distance	4.9 ft
Sensing Distance	1.5 m
Sensing Method	NonPolarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Response Time	Light Source	Operating Temperature [Max]	Operating Temperature [Min]	Cable Length	Cable Length	Output Configuration	Sensing Distance	Sensing Distance	Sensing Method	Ingress Protection	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source
BANNER ENGINEERING Q12RB6LP	700 µs	Red LED	55 °C	-20 C	78.74 in	2 m	Dark-On NPN/PNP	39.37 in	1 m	Polarized Retroreflective	IEC IP67	Cable	30 VDC	10 VDC
BANNER ENGINEERING Q12RB6RQ	1.3 ms	Red LED	55 °C	-20 C			Dark-On NPN/PNP	78.74 "	2 m	Through-Beam	IEC IP67	Connector	30 VDC	10 VDC
BANNER ENGINEERING Q12RB6FF50	700 µs	Red LED	55 °C	-20 C	78.74 in	2 m	Dark-On NPN/PNP	1.969 in	50 mm	Background Suppression	IEC IP67	Cable	30 VDC	10 VDC
BANNER ENGINEERING Q12RB6LPQ	700 µs	Red LED	55 °C	-20 C			Dark-On NPN/PNP	39.37 in	1 m	Polarized Retroreflective	IEC IP67	Connector	30 VDC	10 VDC
BANNER ENGINEERING Q12RB6R	1.3 ms	Red LED	55 °C	-20 C	78.74 in	2 m	Dark-On NPN/PNP	78.74 "	2 m	Through-Beam	IEC IP67	Cable	30 VDC	10 VDC
BANNER ENGINEERING Q12RB6LV	700 µs	Red	55 °C	-20 C	78.74 in	2 m	Dark-On NPN/PNP	4.9 ft	1.5 m	NonPolarized Retroreflective	IEC IP67	Cable	30 VDC	10 VDC	640 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Retroreflective, NonPolarized Optical Sensor 4.9' (1.50m) NPN/PNP - Dark-ON
