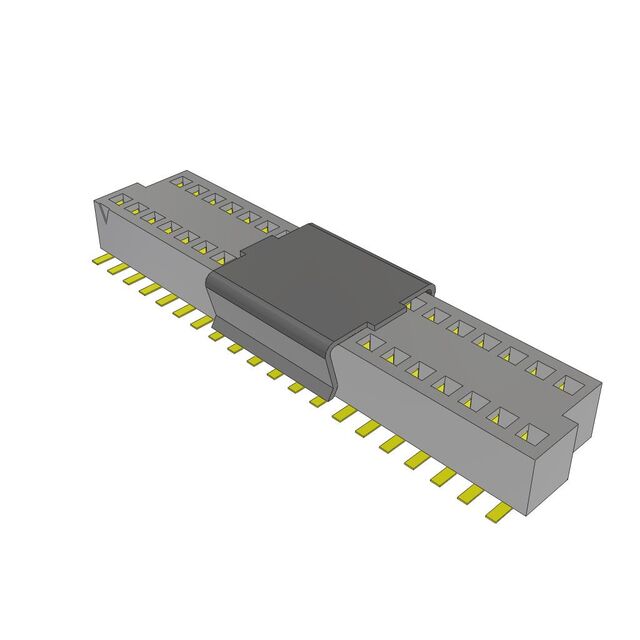

BKS-139-01-L-V-A-P-TR

Active

Samtec Inc.

CONN SOCKET 39POS 0.039 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

BKS-139-01-L-V-A-P-TR

Active

Samtec Inc.

CONN SOCKET 39POS 0.039 GOLD SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BKS-139-01-L-V-A-P-TR

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.084 in
Insulation Height	2.14 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	7 mm, 4.5 mm, 6 mm, 4.14 mm, 5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	39
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

BKS-139 Series

Part	Contact Shape	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Number of Positions Loaded	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Fastening Type	Mated Stacking Heights	Insulation Height	Insulation Height	Number of Rows	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Insulation Material	Material Flammability Rating	Connector Type
Samtec Inc. BKS-139-01-F-V-A	Square	Black	2.54 mm	0.1 in	Tin	All	Female Socket	-55 °C	125 °C	2.8 A per Contact	Push-Pull	4.14 mm 4.5 mm 5 mm 6 mm 7 mm	0.084 in	2.14 mm	2	Phosphor Bronze	0.039 in	1 mm	Gold	39	3 µin	0.076 µm	Surface Mount	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Socket
Samtec Inc. BKS-139-01-L-V-P-TR	Square	Black	2.54 mm	0.1 in	Tin	All	Female Socket	-55 °C	125 °C	2.8 A per Contact	Push-Pull	4.14 mm 4.5 mm 5 mm 6 mm 7 mm	0.084 in	2.14 mm	2	Phosphor Bronze	0.039 in	1 mm	Gold	39	10 çin	0.25 çm	Surface Mount	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Socket
Samtec Inc. BKS-139-01-LM-V-A	Square	Black	2.54 mm	0.1 in	Tin	All	Female Socket	-55 °C	125 °C	2.8 A per Contact	Push-Pull	4.14 mm 4.5 mm 5 mm 6 mm 7 mm	0.084 in	2.14 mm	2	Phosphor Bronze	0.039 in	1 mm	Gold	39	10 çin	0.25 çm	Surface Mount	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Socket
Samtec Inc. BKS-139-01-L-V-A-P	Square	Black	2.54 mm	0.1 in	Tin	All	Female Socket	-55 °C	125 °C	2.8 A per Contact	Push-Pull	4.14 mm 4.5 mm 5 mm 6 mm 7 mm	0.084 in	2.14 mm	2	Phosphor Bronze	0.039 in	1 mm	Gold	39	10 çin	0.25 çm	Surface Mount	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Socket
Samtec Inc. BKS-139-01-L-V-A-P-TR	Square	Black	2.54 mm	0.1 in	Tin	All	Female Socket	-55 °C	125 °C	2.8 A per Contact	Push-Pull	4.14 mm 4.5 mm 5 mm 6 mm 7 mm	0.084 in	2.14 mm	2	Phosphor Bronze	0.039 in	1 mm	Gold	39	10 çin	0.25 çm	Surface Mount	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Socket
Samtec Inc. BKS-139-01-F-V-A-P-TR	Square	Black	2.54 mm	0.1 in	Tin	All	Female Socket	-55 °C	125 °C	2.8 A per Contact	Push-Pull	4.14 mm 4.5 mm 5 mm 6 mm 7 mm	0.084 in	2.14 mm	2	Phosphor Bronze	0.039 in	1 mm	Gold	39	3 µin	0.076 µm	Surface Mount	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Socket
Samtec Inc. BKS-139-01-L-V	Square	Black	2.54 mm	0.1 in	Tin	All	Female Socket	-55 °C	125 °C	2.8 A per Contact	Push-Pull	4.14 mm 4.5 mm 5 mm 6 mm 7 mm	0.084 in	2.14 mm	2	Phosphor Bronze	0.039 in	1 mm	Gold	39	10 çin	0.25 çm	Surface Mount	Solder	Liquid Crystal Polymer (LCP)	UL94 V-0	Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1050	$ 4.07

Description

General part information

BKS-139 Series

39 Position Socket Connector 0.039" (1.00mm) Surface Mount Gold

Documents

Technical documentation and resources

No documents available
