172165-11
ActiveAmphenol RF
CONN N JACK STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
172165-11
ActiveAmphenol RF
CONN N JACK STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 172165-11 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | RG-179, M17/152-RD316, 316 Double Braid, 188 |
| Center Contact Material | Brass, Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | N Type |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder, Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 2.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |

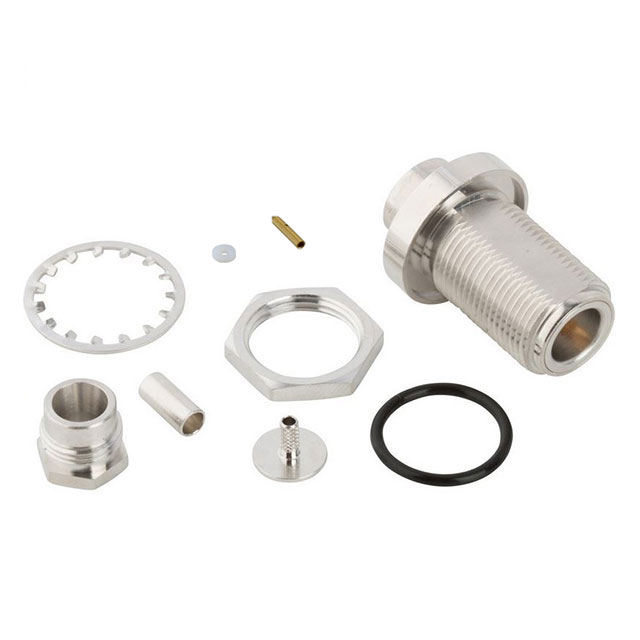

| Includes | 1 Nut, 1 Lockwasher, 1 Clamp, 1 Ferrule, 1 Rear Body, 1 Gasket, 1 Insulator, 1 Connector, 1 Contact |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insertion Loss | 0.15 dB |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 1500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.63 | |
| 10 | $ 31.20 | |||
| 25 | $ 29.85 | |||
| 50 | $ 28.89 | |||
| 100 | $ 27.93 | |||
| 300 | $ 26.39 | |||
Description
General part information
172165 Series
N Type Connector Jack, Female Socket 50 Ohms Panel Mount Crimp or Solder
