6102UE 8771000

Active

Belden Inc.

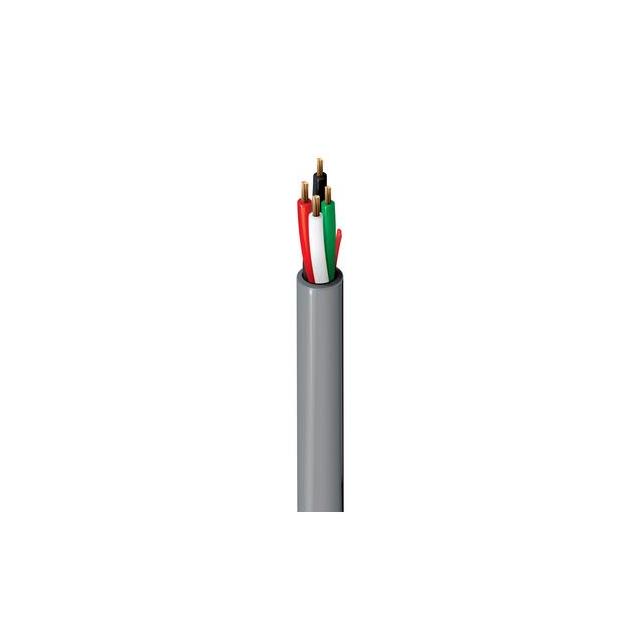

CABLE 4COND 14AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 14AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	6102UE 8771000

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Poly-Vinyl Chloride (LSPVC)
Conductor Material	Copper, Bare
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.257 in
Jacket (Insulation) Diameter [diameter]	6.53 mm
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	UL Style CMP
Usage	Sound, Security
Voltage	150 V
Wire Gauge	13.5 AWG

Part	Wire Gauge	Number of Conductors	Features	Usage	Jacket (Insulation) Material	Conductor Material	Cable Type	Jacket Color	Ratings	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 6102UE 8771000	13.5 AWG	4	Rip Cord	Security Sound	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Copper Bare	Multi-Conductor	Natural	UL Style CMP	1000 ft	304.8 m	75 ░C	0 °C	150 V	Low Smoke Poly-Vinyl Chloride (LSPVC)	0.015 in	0.381 mm	0.257 in	6.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.88

General part information

4 Conductor Multi-Conductor Cable Natural 14 AWG 1000.0' (304.8m)
