1051144-1

Active

TE Connectivity AMP Connectors

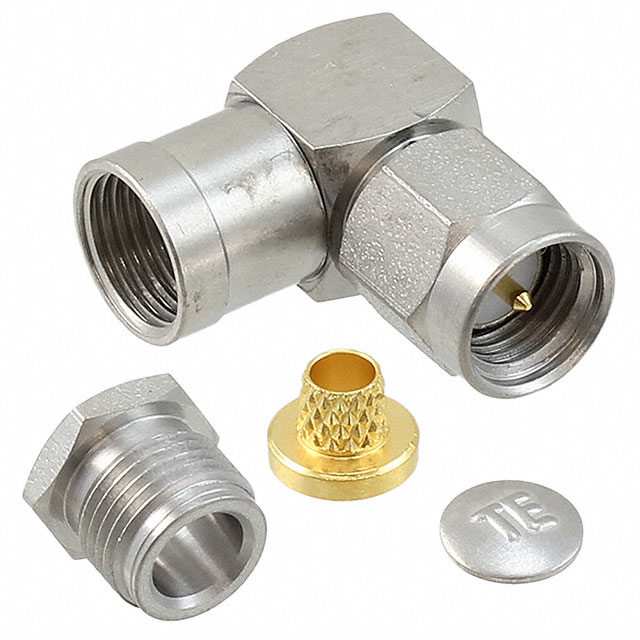

CONN SMA PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN SMA PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1051144-1

Body Material	Stainless Steel
Cable Group	190, RG-180
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Braid Clamp, 1 Clamp, 1 End Cap, 1 Connector
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN SMA PLUG R/A 50 OHM SOLDER

Part	Frequency - Max [Max]	Body Material	Voltage Rating	Dielectric Material	Includes	Shield Termination	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Connector Style	Contact Termination	Number of Ports	Impedance	Center Contact Material	Center Contact Plating	Connector Type	Mounting Type
TE Connectivity AMP Connectors 1051144-1	12.4 GHz	Stainless Steel	335 V	Polytetrafluoroethylene (PTFE)	1 Braid Clamp, 1 Clamp, 1 Connector, 1 End Cap	Clamp	190, RG-180	-65 ░C	165 °C	Silver	SMA	Solder	1	50 Ohms	Brass	Gold	Male Pin, Plug	Free Hanging (In-Line), Right Angle

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
