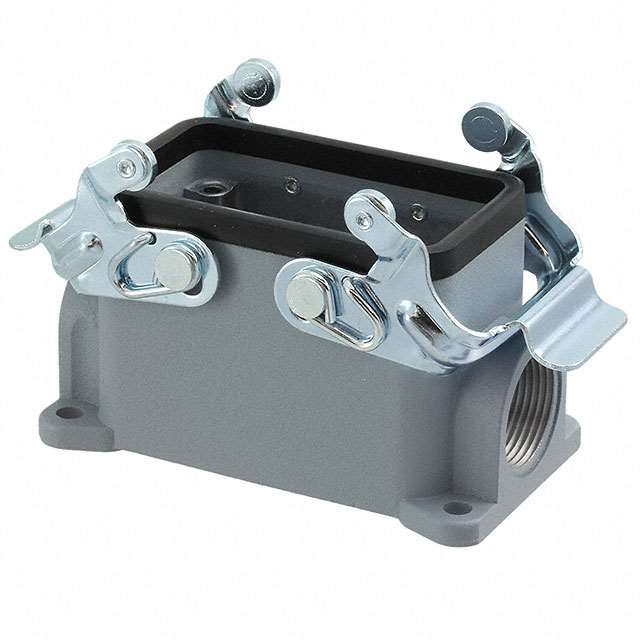

1-1102274-1
ActiveTE Connectivity AMP Connectors
CONN BASE SIDE ENTRY SZ4 PG16
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1102274-1 |
|---|---|
| Connector Type | Base - Box Mount |
| Housing Color | Gray |
| Housing Finish | Aluminum Oxide |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Size | 4 |
| Size / Dimension [x] | 3.701 " |
| Size / Dimension [x] | 94 mm |
| Size / Dimension [y] | 52 mm |
| Size / Dimension [y] | 2.047 " |
| Size / Dimension [z] | 53.5 mm |
| Size / Dimension [z] | 2.106 " |
| Style | Side Entry |
| Thread Size | PG16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1102274 Series
CONN BASE SIDE ENTRY SZ4 PG16
| Part | Housing Finish | Ingress Protection | Connector Type | Lock Location | Style | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Housing Color | Thread Size | Size | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102274-1 | Aluminum Oxide | IP65 - Dust Tight, Water Resistant | Base - Box Mount | Locking Clip (2) on Base Bottom | Side Entry | 53.5 mm | 2.106 " | 3.701 " | 94 mm | 52 mm | 2.047 " | Gray | PG16 | 4 | Aluminum Alloy, Die Cast |
Description
General part information
1102274 Series
Base - Box Mount Connector Side Entry PG16 4 IP65 - Dust Tight, Water Resistant
