N-8B-BK
ActiveEssentra Access Solutions

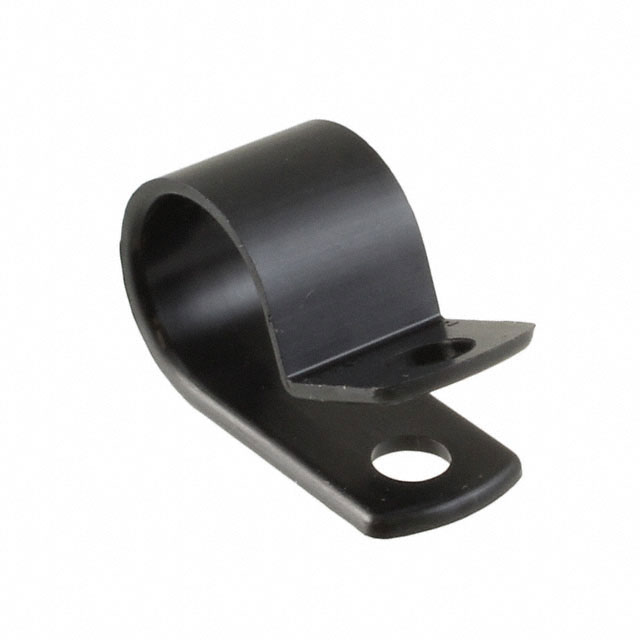

FASTENER, SCREW MOUNT CABLE CLAMP, 12.7 MM, NYLON 6.6 (POLYAMIDE 6.6), BLACK, 12.7 MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N-8B-BK |
|---|---|
| Bundle Center to Mounting Center | 14.3 mm |
| Bundle Center to Mounting Center | 0.563 in |
| Color | Black |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Material Thickness | 0.063 in |
| Material Thickness | 1.6 mm |
| Mounting Type | Fastener |
| Opening Size [diameter] | 12.7 mm |
| Opening Size [diameter] | 0.5 in |
| Panel Hole Size | 5.18 mm |
| Panel Hole Size [diameter] | 0.204 in |
| Screw Size | M5 |
| Screw Size | #10 |
| Type | Clamp, P-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.24 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.18 | |||
| 50 | $ 0.17 | |||
| 100 | $ 0.16 | |||
| 250 | $ 0.14 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| 3000 | $ 0.10 | |||
Description
General part information
N-8 Series
Cable Clamp, P-Type Black Fastener 0.500" (12.70mm)
