MNG18-6FX-BOTTLE

Active

CONN SPADE TERM 18-22AWG 6 100PC

Deep-Dive with AI

Search across all available documentation for this part.

MNG18-6FX-BOTTLE

Active

CONN SPADE TERM 18-22AWG 6 100PC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 152.04

Description

General part information

MNG18 Series

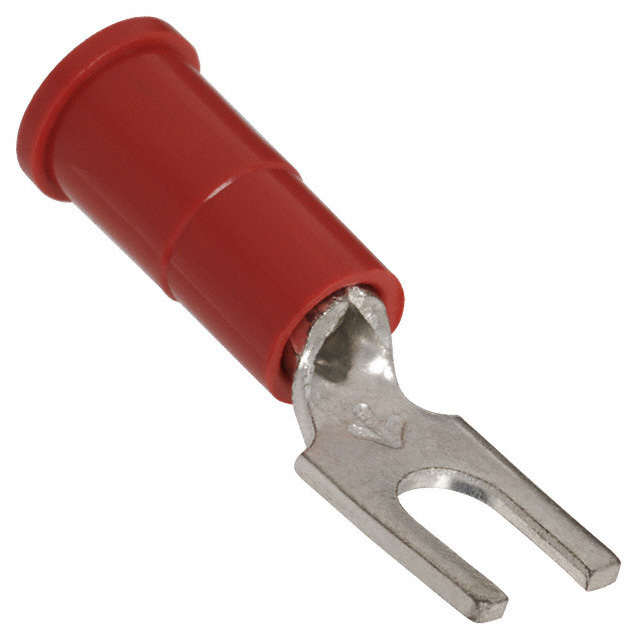

Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNG18-6FX-BOTTLE	MNG18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper, Brass
Diameter - Barrel	-	3.96 mm
Diameter - Barrel	-	0.156 in
Gender	-	Male, Female
Insulation	Insulated	Insulated, Non-Mating End Insulated, Fully Insulated
Insulation Diameter	3.68 mm	0.15 - 3.68 mm
Insulation Diameter	-	3.81 mm
Insulation Diameter	-	4.06 mm
Insulation Diameter [diameter]	0.145 "	0.145 - 0.16 "
Length - Barrel	-	6.35 mm
Length - Barrel	-	0.25 in
Length - Overall	-	0.77 - 25.4 mm
Length - Overall	-	0.9 in
Length - Overall	-	19.56 mm
Length - Overall [x]	18.54 mm	6.35 - 28.45 mm
Length - Overall [x]	0.73 in	0.25 - 1.12 in
Length - Pin	-	0.47 in
Length - Pin	-	11.94 mm
Length - Ring Center to Termination	0.29 in	0.29 in
Length - Ring Center to Termination	7.37 mm	7.37 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Termination	0.44 "	0.44 "
Length - Termination	11.18 mm	11.18 mm
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Pin Diameter	-	1.91 mm
Pin Diameter	-	0.075 in
Stud/Tab Size	6 Stud	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud, 3/8 Stud
Tab Thickness	-	0.02 - 0.032 "
Tab Thickness	-	0.51 - 0.81 mm
Tab Width	-	2.79 - 6.35 mm
Tab Width	-	0.11 - 0.25 in
Terminal Type	Standard	Circular, Flanged, Standard, Snap, Spring, Pin (Plug), Male, Butt Splice, Inline, Individual Openings, Multi-Stud, Female, Receptacle (Socket)
Termination	Crimp	Crimp
Thickness	-	0.03 in
Thickness	-	0.76 mm
Width - Outer Edges	8.64 mm	7.87 - 20.07 mm
Width - Outer Edges	0.34 in	0.34 - 0.79 in
Width - Outer Edges	-	0.25 - 0.56 "
Width - Outer Edges	-	6.35 - 14.22 mm
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

MNG18 Series

CONN RING CIRC 18-22AWG #6 100PC

Part	Stud/Tab Size	Contact Material	Terminal Type	Termination	Insulation Diameter	Insulation Diameter [diameter]	Thickness	Thickness	Insulation	Contact Finish	Mounting Type	Length - Overall [x]	Length - Overall [x]	Color	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination	Length - Overall	Stud/Tab Size	Length - Overall	Pin Diameter [diameter]	Pin Diameter [diameter]	Length - Pin [x]	Length - Pin [x]	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Gender
3M MNG18-6R/SX-BOTTLE	6 Stud	Copper, ETP	Circular	Crimp	3.68 mm	0.145 "	0.03 in	0.76 mm	Insulated	Tin	Free Hanging (In-Line)	20.07 mm	0.79 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG	0.25 "	6.35 mm
3M MNG18-8FFBX-BOTTLE		Copper, ETP	Flanged	Crimp	3.68 mm	0.145 "			Insulated	Tin	Free Hanging (In-Line)		0.84 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG			0.25 in	6.35 mm	0.44 "	11.18 mm	21.34 mm	8 Stud
3M MNG18-47PX-A-BOTTLE		Copper, ETP		Crimp					Insulated	Tin				Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG							22.86 mm		0.9 in	1.91 mm	0.075 in	0.47 in	11.94 mm
3M MNG18-6FB/SX-BOTTLE	6 Stud	Copper, ETP	Standard	Crimp	3.68 mm	0.145 "			Insulated	Tin	Free Hanging (In-Line)		0.84 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG	0.25 "	6.35 mm	0.25 in	6.35 mm	0.44 "	11.18 mm	21.34 mm
3M MNG18-4FLK	4 Stud	Copper, ETP	Snap, Spring	Crimp	3.68 mm	0.145 "			Insulated	Tin	Free Hanging (In-Line)	22.1 mm	0.87 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG	0.25 "	6.35 mm	0.25 in	6.35 mm	0.44 "	11.18 mm
3M MNG18-14R/SX-BOTTLE	0.25 Stud	Copper, ETP	Circular	Crimp	3.68 mm	0.145 "	0.03 in	0.76 mm	Insulated	Tin	Free Hanging (In-Line)	27.18 mm	1.07 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG	0.47 in	11.94 mm
3M MNG18-187DMK		Copper, ETP	Standard	Crimp	3.68 mm	0.145 "			Non-Mating End Insulated	Tin	Free Hanging (In-Line)		0.84 in	Red		22 AWG	17.5 AWG							21.34 mm							0.02 "	0.51 mm	4.75 mm	0.187 in	Male
3M MNG18-6FLX-BOTTLE	6 Stud	Copper, ETP	Snap, Spring	Crimp	3.68 mm	0.145 "			Insulated	Tin	Free Hanging (In-Line)	22.1 mm	0.87 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG	0.25 "	6.35 mm	0.25 in	6.35 mm	0.44 "	11.18 mm
3M MNG18-187DFIK		Brass	Standard	Crimp	3.68 mm	0.145 "			Fully Insulated	Tin	Free Hanging (In-Line)	20.57 mm	0.81 in	Red		22 AWG	17.5 AWG														0.02 "	0.51 mm	4.75 mm	0.187 in	Female
3M MNG18-250DFK		Brass	Standard	Crimp	3.68 mm	0.145 "			Non-Mating End Insulated	Tin	Free Hanging (In-Line)	21.84 mm	0.86 "	Red		22 AWG	17.5 AWG														0.032 in	0.81 mm	6.35 mm	0.25 in	Female
