MNG18-14R/SX-BOTTLE

Active

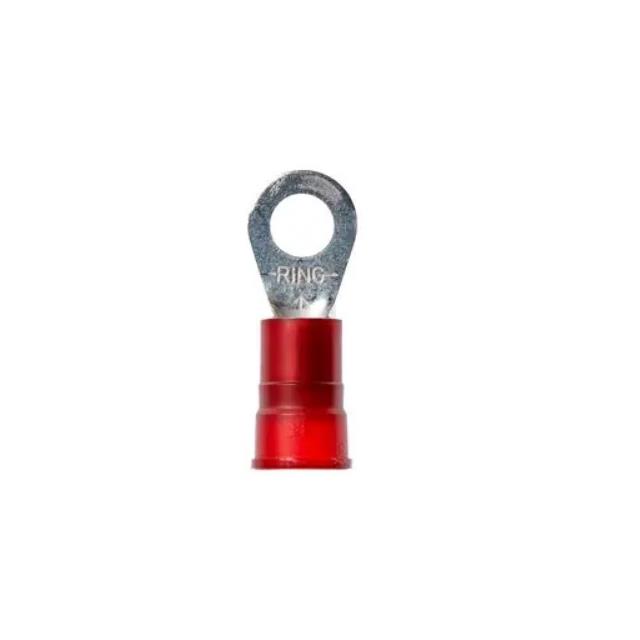

CONN RING CIRC 18-22AWG 100PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MNG18-14R/SX-BOTTLE

Active

CONN RING CIRC 18-22AWG 100PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 166.01
		10	$ 129.69
		25	$ 118.21
		50	$ 110.49

Description

General part information

MNG18 Series

Ring Terminal Connector 1/4 Stud Circular 18-22 AWG Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MNG18-14R/SX-BOTTLE	MNG18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper, Brass
Diameter - Barrel	-	3.96 mm
Diameter - Barrel	-	0.156 in
Gender	-	Male, Female
Insulation	Insulated	Insulated, Non-Mating End Insulated, Fully Insulated
Insulation Diameter	3.68 mm	0.15 - 3.68 mm
Insulation Diameter	-	3.81 mm
Insulation Diameter	-	4.06 mm
Insulation Diameter [diameter]	0.145 "	0.145 - 0.16 "
Length - Barrel	-	6.35 mm
Length - Barrel	-	0.25 in
Length - Overall	-	0.77 - 25.4 mm
Length - Overall	-	0.9 in
Length - Overall	-	19.56 mm
Length - Overall [x]	27.18 mm	6.35 - 28.45 mm
Length - Overall [x]	1.07 in	0.25 - 1.12 in
Length - Pin	-	0.47 in
Length - Pin	-	11.94 mm
Length - Ring Center to Termination	-	0.25 in
Length - Ring Center to Termination	-	6.35 mm
Length - Ring Center to Termination	-	0.29 in
Length - Ring Center to Termination	-	7.37 mm
Length - Termination	-	0.44 "
Length - Termination	-	11.18 mm
Material - Insulation	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Pin Diameter	-	1.91 mm
Pin Diameter	-	0.075 in
Stud/Tab Size	0.25 Stud	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud, 3/8 Stud
Tab Thickness	-	0.02 - 0.032 "
Tab Thickness	-	0.51 - 0.81 mm
Tab Width	-	2.79 - 6.35 mm
Tab Width	-	0.11 - 0.25 in
Terminal Type	Circular	Circular, Flanged, Standard, Snap, Spring, Pin (Plug), Male, Butt Splice, Inline, Individual Openings, Multi-Stud, Female, Receptacle (Socket)
Termination	Crimp	Crimp
Thickness	0.03 in	0.03 in
Thickness	0.76 mm	0.76 mm
Width - Outer Edges	-	0.34 - 0.79 in
Width - Outer Edges	-	7.87 - 20.07 mm
Width - Outer Edges [y]	0.47 in	0.25 - 0.56 "
Width - Outer Edges [y]	11.94 mm	6.35 - 14.22 mm
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

MNG18 Series

CONN RING CIRC 18-22AWG #6 100PC

Part	Stud/Tab Size	Contact Material	Terminal Type	Termination	Insulation Diameter	Insulation Diameter [diameter]	Thickness	Thickness	Insulation	Contact Finish	Mounting Type	Length - Overall [x]	Length - Overall [x]	Color	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Termination	Length - Termination	Length - Overall	Stud/Tab Size	Length - Overall	Pin Diameter [diameter]	Pin Diameter [diameter]	Length - Pin [x]	Length - Pin [x]	Tab Thickness	Tab Thickness	Tab Width	Tab Width	Gender
3M MNG18-6R/SX-BOTTLE	6 Stud	Copper, ETP	Circular	Crimp	3.68 mm	0.145 "	0.03 in	0.76 mm	Insulated	Tin	Free Hanging (In-Line)	20.07 mm	0.79 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG	0.25 "	6.35 mm
3M MNG18-8FFBX-BOTTLE		Copper, ETP	Flanged	Crimp	3.68 mm	0.145 "			Insulated	Tin	Free Hanging (In-Line)		0.84 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG			0.25 in	6.35 mm	0.44 "	11.18 mm	21.34 mm	8 Stud
3M MNG18-47PX-A-BOTTLE		Copper, ETP		Crimp					Insulated	Tin				Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG							22.86 mm		0.9 in	1.91 mm	0.075 in	0.47 in	11.94 mm
3M MNG18-6FB/SX-BOTTLE	6 Stud	Copper, ETP	Standard	Crimp	3.68 mm	0.145 "			Insulated	Tin	Free Hanging (In-Line)		0.84 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG	0.25 "	6.35 mm	0.25 in	6.35 mm	0.44 "	11.18 mm	21.34 mm
3M MNG18-4FLK	4 Stud	Copper, ETP	Snap, Spring	Crimp	3.68 mm	0.145 "			Insulated	Tin	Free Hanging (In-Line)	22.1 mm	0.87 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG	0.25 "	6.35 mm	0.25 in	6.35 mm	0.44 "	11.18 mm
3M MNG18-14R/SX-BOTTLE	0.25 Stud	Copper, ETP	Circular	Crimp	3.68 mm	0.145 "	0.03 in	0.76 mm	Insulated	Tin	Free Hanging (In-Line)	27.18 mm	1.07 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG	0.47 in	11.94 mm
3M MNG18-187DMK		Copper, ETP	Standard	Crimp	3.68 mm	0.145 "			Non-Mating End Insulated	Tin	Free Hanging (In-Line)		0.84 in	Red		22 AWG	17.5 AWG							21.34 mm							0.02 "	0.51 mm	4.75 mm	0.187 in	Male
3M MNG18-6FLX-BOTTLE	6 Stud	Copper, ETP	Snap, Spring	Crimp	3.68 mm	0.145 "			Insulated	Tin	Free Hanging (In-Line)	22.1 mm	0.87 in	Red	Nylon, Polyamide (PA)	22 AWG	17.5 AWG	0.25 "	6.35 mm	0.25 in	6.35 mm	0.44 "	11.18 mm
3M MNG18-187DFIK		Brass	Standard	Crimp	3.68 mm	0.145 "			Fully Insulated	Tin	Free Hanging (In-Line)	20.57 mm	0.81 in	Red		22 AWG	17.5 AWG														0.02 "	0.51 mm	4.75 mm	0.187 in	Female
3M MNG18-250DFK		Brass	Standard	Crimp	3.68 mm	0.145 "			Non-Mating End Insulated	Tin	Free Hanging (In-Line)	21.84 mm	0.86 "	Red		22 AWG	17.5 AWG														0.032 in	0.81 mm	6.35 mm	0.25 in	Female
