D38999/26WJ35PA

Active

TE Connectivity Raychem Cable Protection

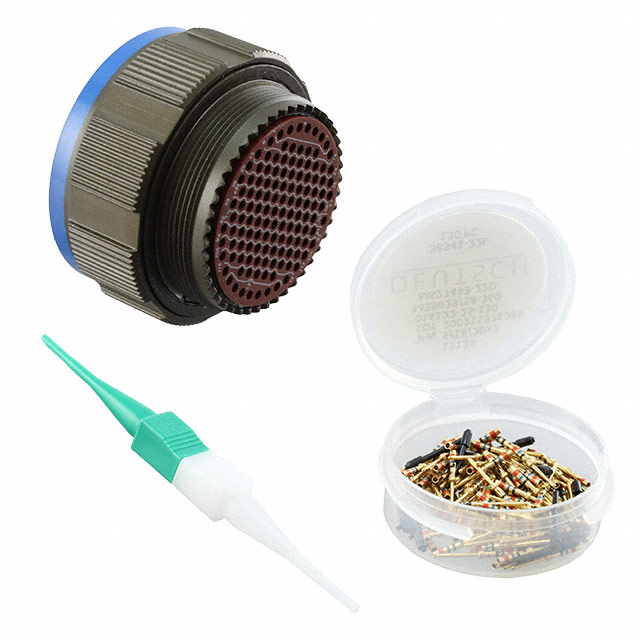

CONN PLUG MALE 128POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMIL-DTL-38999 III Quick Ref Guide Datasheet

D38999/26WJ35PA

Active

TE Connectivity Raychem Cable Protection

CONN PLUG MALE 128POS GOLD CRIMP

Deep-Dive with AI

DocumentsMIL-DTL-38999 III Quick Ref Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WJ35PA

Applications	Industrial, Aviation, Communication Systems, Military
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Self Locking
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	128
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size, MIL	J
Shielding	Shielded
Termination	Crimp

D38999/26WJ Series

Part	Primary Material	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Housing Color	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Contact Type	Features	Type	Shell Size, MIL	Shell Material	Orientation	Connector Type	Contact Shape	Shielding	Insert Material	Shell Finish	Contact Size	Contact Size	Operating Temperature [Min]	Operating Temperature [Max]	Qualification	Note	Grade	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Applications	Voltage Rating	Color	Contact Finish - Mating	Contact Material	Termination	Current Rating (Amps)
TE Connectivity Raychem Cable Protection D38999/26WJ20SN L/C	Metal	Free Hanging (In-Line)	4	3	23	Olive Drab	20	25	Environment Resistant	Crimp	Coupling Nut	For Female Sockets	J	Aluminum	N	Plug Housing	Circular	Shielded	Thermoplastic	Cadmium	3 4 10 13	8 12 16 20	-65 ░C	347 °F	MIL-DTL-38999 Series III	Contacts Not Included	Military
TE Connectivity Raychem Cable Protection D38999/26WJ4PA	Metal	Free Hanging (In-Line)					25	4	Environment Resistant		Coupling Nut			Aluminum	A	Male Pins Plug		Shielded	Thermoplastic	Olive Drab Cadmium			-65 ░C	347 °F	MIL-DTL-38999 Series III		Military	1.27 µm	50 µin	56	Aviation Communication Systems Industrial Military	600 VAC 850 V	Olive Drab	Gold	Copper Alloy	Crimp
TE Connectivity Raychem Cable Protection D38999/26WJ29SE	Metal	Free Hanging (In-Line)					25	29	Environment Resistant		Coupling Nut			Aluminum	E	Female Sockets Plug		Shielded	Thermoplastic	Olive Drab Cadmium			-65 ░C	347 °F	MIL-DTL-38999 Series III		Military	1.27 µm	50 µin	29	Aviation Communication Systems Industrial Military	600 VAC 850 V	Olive Drab	Gold	Copper Alloy	Crimp
TE Connectivity Raychem Cable Protection D38999/26WJ35SN	Metal	Free Hanging (In-Line)							Environment Resistant		Self Locking		J	Aluminum	N	Female Sockets Plug		Shielded	Thermoplastic	Olive Drab Cadmium			-65 ░C	347 °F	MIL-DTL-38999 Series III		Military	1.27 µm	50 µin	128	Aviation Communication Systems Industrial Military		Olive Drab	Gold	Copper Alloy	Crimp	5 A
TE Connectivity Raychem Cable Protection D38999/26WJ35PA	Metal	Free Hanging (In-Line)							Environment Resistant		Self Locking		J	Aluminum	A	Male Pins Plug		Shielded	Thermoplastic	Olive Drab Cadmium			-65 ░C	347 °F	MIL-DTL-38999 Series III		Military	1.27 µm	50 µin	128	Aviation Communication Systems Industrial Military		Olive Drab	Gold	Copper Alloy	Crimp	5 A
TE Connectivity Raychem Cable Protection D38999/26WJ61SN-LC	Metal	Free Hanging (In-Line)				Olive Drab	25	61	Environment Resistant	Crimp	Coupling Nut	For Female Sockets	J	Aluminum	N	Plug Housing	Circular	Shielded	Thermoplastic	Cadmium		20	-65 ░C	347 °F	MIL-DTL-38999 Series III	Contacts Not Included	Military			61
TE Connectivity Raychem Cable Protection D38999/26WJ37SE	Metal	Free Hanging (In-Line)					25	37	Environment Resistant		Self Locking		J	Aluminum	E	Female Sockets Plug		Shielded	Thermoplastic	Olive Drab Cadmium			-65 ░C	347 °F	MIL-DTL-38999 Series III		Military	1.27 µm	50 µin	37	Aviation Communication Systems Industrial Military	750 Vrms 1050 VDC	Olive Drab	Gold	Copper Alloy	Crimp
TE Connectivity Raychem Cable Protection D38999/26WJ35SA	Metal	Free Hanging (In-Line)							Environment Resistant		Self Locking		J	Aluminum	A	Female Sockets Plug		Shielded	Thermoplastic	Olive Drab Cadmium			-65 ░C	347 °F	MIL-DTL-38999 Series III		Military	1.27 µm	50 µin	128	Aviation Communication Systems Industrial Military		Olive Drab	Gold	Copper Alloy	Crimp	5 A
TE Connectivity Raychem Cable Protection D38999/26WJ61PN	Metal	Free Hanging (In-Line)					25	61	Environment Resistant		Self Locking		J	Aluminum	N	Male Pins Plug		Shielded	Thermoplastic	Olive Drab Cadmium			-65 ░C	347 °F	MIL-DTL-38999 Series III		Military	1.27 µm	50 µin	61	Aviation Communication Systems Industrial Military		Olive Drab	Gold	Copper Alloy	Crimp	7.5 A
