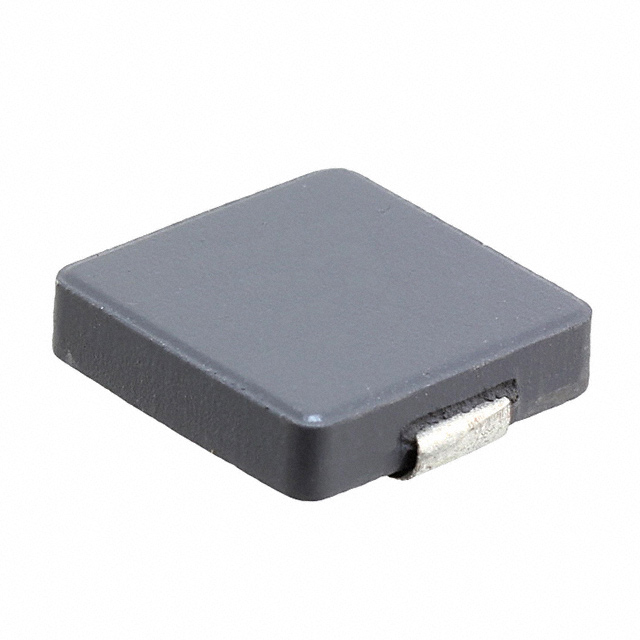

SRP1238A-R33M

Active

Bourns Inc.

POWER INDUCTOR (SMD), 330 NH, 36.5 A, SHIELDED, 62 A, SRP1238A SERIES

Search across all available documentation for this part.

Active

Bourns Inc.

POWER INDUCTOR (SMD), 330 NH, 36.5 A, SHIELDED, 62 A, SRP1238A SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Shielding	DC Resistance (DCR) [Max]	Ratings	Inductance	Inductance Frequency - Test	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Material - Core	Package / Case	Type	Q @ Freq	Frequency - Self Resonant	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)
Bourns Inc. SRP1238A-R33M	36.5 A	Shielded	1 mOhm	AEC-Q200	330 nH	100 kHz	20 %	0.492 "	13.5 mm	0.531 in	12.5 mm	Carbonyl Powder	Nonstandard	Drum Core Wirewound	10 100 kHz	85 MHz	Surface Mount	3.5 mm	0.138 in
Bourns Inc. SRP1238A-R68M	28 A	Shielded	2.5 mOhm	AEC-Q200	0.68 µH	100 kHz	20 %	0.492 "	13.5 mm	0.531 in	12.5 mm	Carbonyl Powder	Nonstandard	Drum Core Wirewound	15 100 kHz	50 MHz	Surface Mount	3.5 mm	0.138 in	49 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

330 nH Shielded Drum Core, Wirewound Inductor 36.5 A 1mOhm Max Nonstandard
