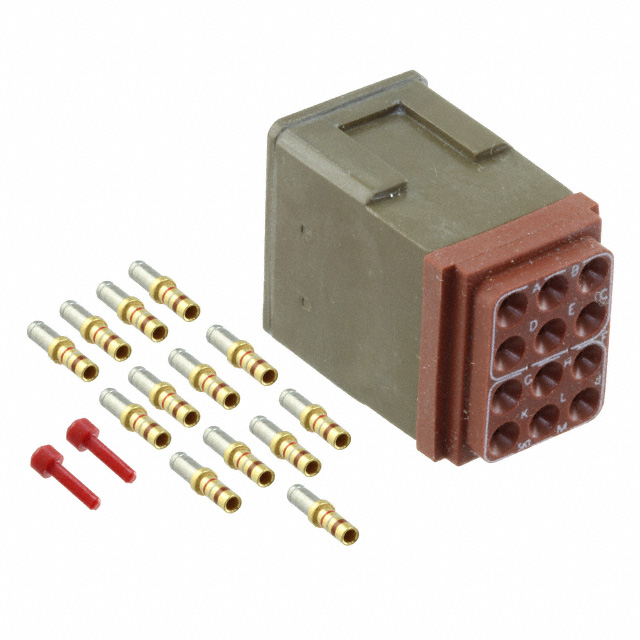

M81714/60-20-02
ActiveTE Connectivity Raychem Cable Protection
CONN MOD SZ20 0.672" L X 0.510"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M81714/60-20-02
ActiveTE Connectivity Raychem Cable Protection
CONN MOD SZ20 0.672" L X 0.510"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M81714/60-20-02 |
|---|---|
| Contact Size | 20 |
| Grade | Military |
| Module Capacity | 12 |
| Qualification | MIL-T-81714 Series II |
| Size / Dimension [x] | 0.672 " |
| Size / Dimension [x] | 17.07 mm |
| Size / Dimension [y] | 0.51 in |
| Size / Dimension [y] | 12.95 mm |
| Size / Dimension [z] | 0.92 " |
| Size / Dimension [z] | 23.37 mm |
| Type | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 39.97 | |
| 10 | $ 36.68 | |||
| 25 | $ 35.27 | |||
| 50 | $ 34.10 | |||
| 100 | $ 33.59 | |||
Description
General part information
M81714/60 Series
Connector Module Contact Size 20
