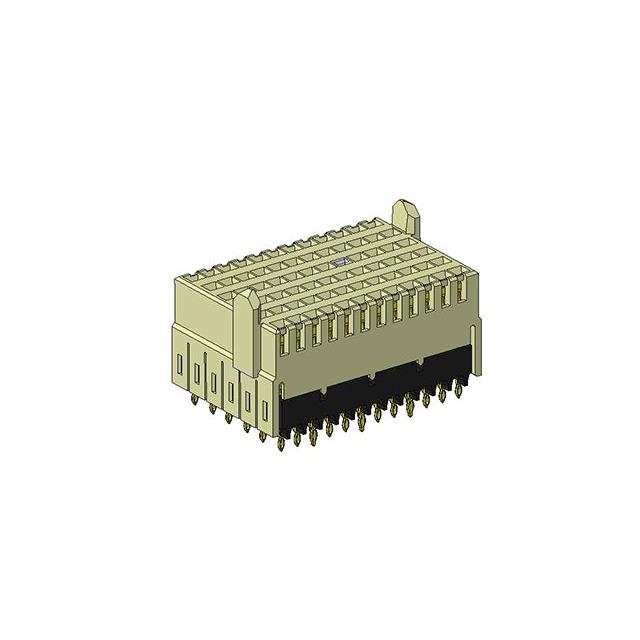

10120764-101LF

Active

Amphenol ICC (FCI)

CONN POWER AIRMAX

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN POWER AIRMAX

Technical Specifications

Parameters and characteristics for this part

Specification	10120764-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	6
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Number of Rows	Connector Usage	Number of Columns	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions	Current Rating (Amps)	Connector Type	Material Flammability Rating	Mounting Type	Termination	Color	Number of Positions Loaded	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol ICC (FCI) 10120764-101LF	12	Daughtercard	6	0.079 in	2 mm	Gold	72	500 mA	Receptacle Female Sockets	UL94 V-0	Through Hole	Press-Fit	Natural	All	High Speed	85 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

72 Connector Receptacle, Female Sockets Through Hole Natural High Speed
