ABS5516549

Active

Panasonic Electric Works

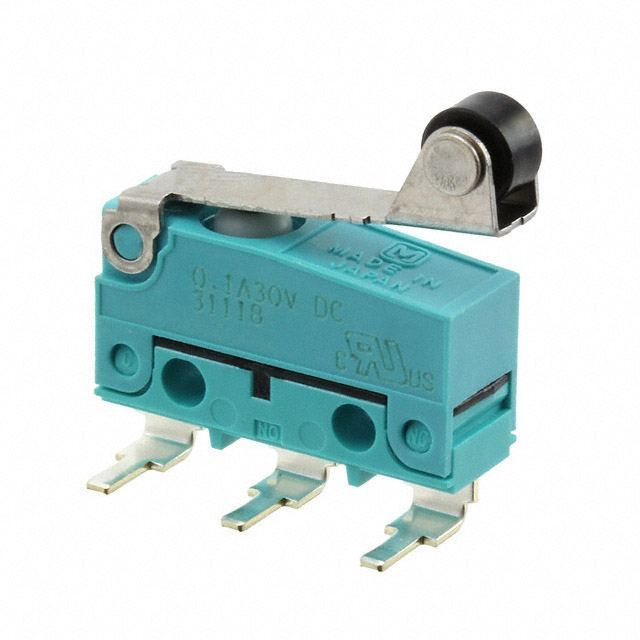

SWITCH SNAP ACTION SPDT 0.1A 30V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Through Hole, Right Angle

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ABS5516549	ABS551 Series

Actuator Type	Roller, Lever	Simulated Roller, Lever, Roller
Circuit	SPDT	SPDT
Current Rating (Amps)	100 mA	100 mA
Differential Travel	0.5 mm	0.5 - 0.8 mm
Differential Travel	0.02 in	0.02 - 0.031 "
Electrical Life	200000 Cycles	200000 Cycles
Features	Actuator Mounted Left Side	Actuator Mounted Left Side
Ingress Protection	IP50	IP50
Mechanical Life	5000000 Cycles	5000000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Operating Force	60 gf	28 - 60 gf
Operating Position	-	11.7 mm
Operating Position	-	0.46 in
Operating Position [custom]	0.571 in	0.571 in
Operating Position [custom]	14.5 mm	14.5 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	0.032 in	0.032 - 0.047 "
Overtravel	0.81 mm	0.81 - 1.2 mm
Pretravel	0.1 in	0.1 - 0.11 in
Pretravel	2.5 mm	2.5 - 2.8 mm
Release Force	4.079 gf	1.734 - 4.079 gf
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - DC	30 V	30 V

SWITCH SNAP ACTION SPDT 0.1A 30V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Ingress Protection	Mounting Type	Release Force	Electrical Life	Actuator Type	Switch Function	Termination Style	Voltage Rating - DC	Mechanical Life	Operating Position	Operating Position	Pretravel	Pretravel	Features	Current Rating (Amps)	Circuit	Operating Force	Differential Travel	Differential Travel	Operating Position [custom]	Operating Position [custom]
Panasonic Electric Works ABS5514349	85 °C	-40 °C	1.2 mm	0.047 "	IP50	Through Hole, Right Angle	1.734 gf	200000 Cycles	Lever, Simulated Roller	On-Mom	PC Pin	30 V	5000000 Cycles	11.7 mm	0.46 in	0.11 in	2.8 mm	Actuator Mounted Left Side	100 mA	SPDT	28 gf	0.8 mm	0.031 "
Panasonic Electric Works ABS5516549	85 °C	-40 °C	0.81 mm	0.032 in	IP50	Through Hole, Right Angle	4.079 gf	200000 Cycles	Lever, Roller	On-Mom	PC Pin	30 V	5000000 Cycles			0.1 in	2.5 mm	Actuator Mounted Left Side	100 mA	SPDT	60 gf	0.5 mm	0.02 in	0.571 in	14.5 mm
