Q-2P03L0005003I

Active

Amphenol Custom Cable

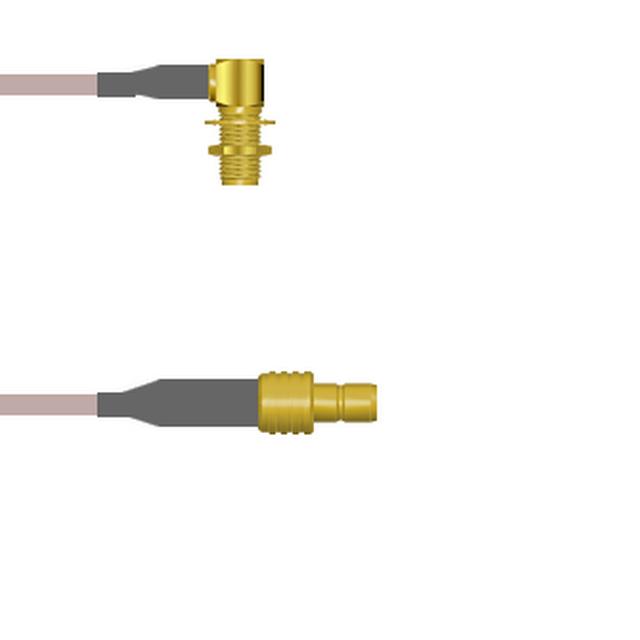

CBL ASSY SMA-SMB JACK-JACK 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2P03L0005003I

Active

Amphenol Custom Cable

CBL ASSY SMA-SMB JACK-JACK 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P03L0005003I

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	3 in
Length	76.2 mm
Overall Impedance	50 Ohms
Style	SMA to SMB

Q-2P03L0 Series

Part	Style	Length	Length	Length	1st Contact Gender	1st Connector Mounting Feature	Color	1st Connector	Connector Impedance	2nd Contact Gender	Overall Impedance	Frequency - Max [Max]	Cable Impedance	2nd Connector	1st Connector Mounting Type	Features	2nd Connector Mounting Type	Cable Type
Amphenol Custom Cable Q-2P03L0005048I	SMA to SMB	1200 mm	4 ft	48 in	Female	Bulkhead - Front Side Nut	Copper	Right Angle SMA Jack	50 Ohms	Male	50 Ohms	3 GHz	50 Ohms	SMB Jack	Panel Mount	Shielded	Free Hanging (In-Line)	RG-316
Amphenol Custom Cable Q-2P03L0005060I	SMA to SMB	1.5 m	5 ft	5 '	Female	Bulkhead - Front Side Nut	Copper	Right Angle SMA Jack	50 Ohms	Male	50 Ohms	3 GHz	50 Ohms	SMB Jack	Panel Mount	Shielded	Free Hanging (In-Line)	RG-316
Amphenol Custom Cable Q-2P03L00051.5M	SMA to SMB	1.5 m	4.9 ft	59.1 in	Female	Bulkhead - Front Side Nut	Copper	Right Angle SMA Jack	50 Ohms	Male	50 Ohms	3 GHz	50 Ohms	SMB Jack	Panel Mount	Shielded	Free Hanging (In-Line)	RG-316
Amphenol Custom Cable Q-2P03L0003060I	SMA to SMB	1.5 m	5 ft	5 '	Female	Bulkhead - Front Side Nut	Black	Right Angle SMA Jack	50 Ohms	Male	50 Ohms	1 GHz	50 Ohms	SMB Jack	Panel Mount	Shielded	Free Hanging (In-Line)	RG-174
Amphenol Custom Cable Q-2P03L0005002M	SMA to SMB	2 m	6.6 ft	78.7 in	Female	Bulkhead - Front Side Nut	Copper	Right Angle SMA Jack	50 Ohms	Male	50 Ohms	3 GHz	50 Ohms	SMB Jack	Panel Mount	Shielded	Free Hanging (In-Line)	RG-316
Amphenol Custom Cable Q-2P03L00052.5M	SMA to SMB	2.5 m	8.2 '	98.4 in	Female	Bulkhead - Front Side Nut	Copper	Right Angle SMA Jack	50 Ohms	Male	50 Ohms	3 GHz	50 Ohms	SMB Jack	Panel Mount	Shielded	Free Hanging (In-Line)	RG-316
Amphenol Custom Cable Q-2P03L0005009I	SMA to SMB	228.6 mm		9 "	Female	Bulkhead - Front Side Nut	Copper	Right Angle SMA Jack	50 Ohms	Male	50 Ohms	3 GHz	50 Ohms	SMB Jack	Panel Mount	Shielded	Free Hanging (In-Line)	RG-316
Amphenol Custom Cable Q-2P03L0005003I	SMA to SMB	76.2 mm		3 in	Female	Bulkhead - Front Side Nut	Copper	Right Angle SMA Jack	50 Ohms	Male	50 Ohms	3 GHz	50 Ohms	SMB Jack	Panel Mount	Shielded	Free Hanging (In-Line)	RG-316
Amphenol Custom Cable Q-2P03L0005072I	SMA to SMB	1.8 m	6 ft	72 in	Female	Bulkhead - Front Side Nut	Copper	Right Angle SMA Jack	50 Ohms	Male	50 Ohms	3 GHz	50 Ohms	SMB Jack	Panel Mount	Shielded	Free Hanging (In-Line)	RG-316
Amphenol Custom Cable Q-2P03L0005012I	SMA to SMB	304.8 mm		12 "	Female	Bulkhead - Front Side Nut	Copper	Right Angle SMA Jack	50 Ohms	Male	50 Ohms	3 GHz	50 Ohms	SMB Jack	Panel Mount	Shielded	Free Hanging (In-Line)	RG-316

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 81.48
		25	$ 79.88
		50	$ 78.29
		100	$ 76.69
		250	$ 75.09

Description

General part information

Q-2P03L0 Series

Cable Assembly Coaxial SMA to SMB RG-316 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
