S25FS064SAGNFB033

Active

Infineon Technologies

IC FLASH 64MBIT SPI/QUAD 8LGA

Deep-Dive with AI

Search across all available documentation for this part.

S25FS064SAGNFB033

Active

Infineon Technologies

IC FLASH 64MBIT SPI/QUAD 8LGA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S25FS064SAGNFB033

Clock Frequency	133 MHz
Grade	Automotive
Memory Format	FLASH
Memory Interface	Quad I/O, QPI, SPI
Memory Organization	8M x 8
Memory Size	64 Gbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C

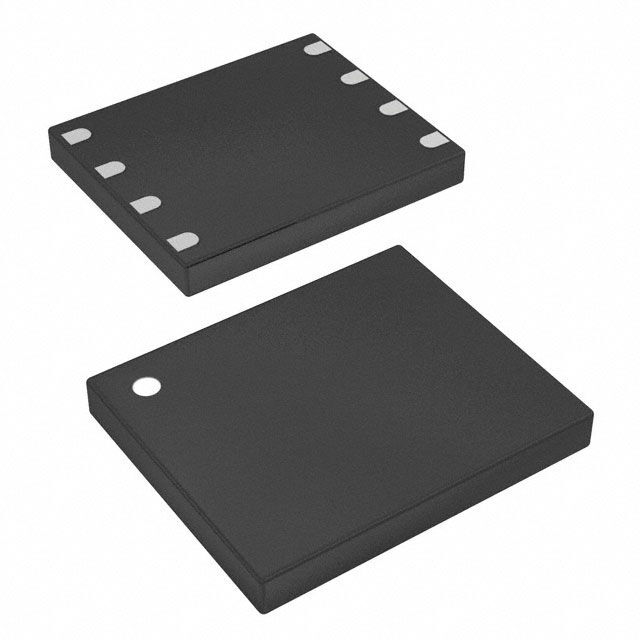

Package / Case	8-WLGA
Qualification	AEC-Q100
Supplier Device Package	8-LGA (5x6)
Technology	FLASH - NOR
Voltage - Supply [Max]	2 V
Voltage - Supply [Min]	1.7 V

S25FS064 Series

Part	Memory Interface	Package / Case [y]	Package / Case	Package / Case [x]	Memory Type	Memory Size	Clock Frequency	Mounting Type	Technology	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Memory Organization	Operating Temperature [Max]	Operating Temperature [Min]	Memory Format	Qualification	Grade	Write Cycle Time - Word, Page	Access Time
Infineon Technologies S25FS064SDSMFV010	SPI - Quad I/O	5.3 mm	8-SOIC	0.209 "	Non-Volatile	64 Gbit	80 MHz	Surface Mount	FLASH - NOR	1.7 V	2 V	8-SOIC	8M x 8	105 °C	-40 °C	FLASH
Infineon Technologies S25FS064SDSMFB013	QPI Quad I/O SPI	5.3 mm	8-SOIC	0.209 "	Non-Volatile	64 Gbit	80 MHz	Surface Mount	FLASH - NOR	1.7 V	2 V	8-SOIC	8M x 8	105 °C	-40 °C	FLASH
Infineon Technologies S25FS064SAGNFB033	QPI Quad I/O SPI		8-WLGA		Non-Volatile	64 Gbit	133 MHz	Surface Mount	FLASH - NOR	1.7 V	2 V	8-LGA (5x6)	8M x 8	105 °C	-40 °C	FLASH	AEC-Q100	Automotive
Infineon Technologies S25FS064SDSMFM010	QPI Quad I/O SPI	5.3 mm	8-SOIC	0.209 "	Non-Volatile	64 Gbit	80 MHz	Surface Mount	FLASH - NOR	1.7 V	2 V	8-SOIC	8M x 8	125 °C	-40 °C	FLASH	AEC-Q100	Automotive
Infineon Technologies S25FS064SDSMFV010	SPI - Quad I/O	5.3 mm	8-SOIC	0.209 "	Non-Volatile	64 Gbit	80 MHz	Surface Mount	FLASH - NOR	1.7 V	2 V	8-SOIC	8M x 8	105 °C	-40 °C	FLASH
Infineon Technologies S25FS064SDSBHV020	SPI - Quad I/O		24-TBGA		Non-Volatile	64 Gbit	80 MHz	Surface Mount	FLASH - NOR	1.7 V	2 V	24-BGA	8M x 8	105 °C	-40 °C	FLASH
Infineon Technologies S25FS064SDSBHM023	QPI Quad I/O SPI		24-TBGA		Non-Volatile	64 Gbit	80 MHz	Surface Mount	FLASH - NOR (SLC)	1.7 V	2 V	24-BGA	8M x 8	125 °C	-40 °C	FLASH			2 ms	6 ns
Infineon Technologies S25FS064SDSBHM020	QPI Quad I/O SPI		24-TBGA		Non-Volatile	64 Gbit	80 MHz	Surface Mount	FLASH - NOR (SLC)	1.7 V	2 V	24-BGA	8M x 8	125 °C	-40 °C	FLASH			2 ms	6 ns
Infineon Technologies S25FS064SDSMFB010	QPI Quad I/O SPI	5.3 mm	8-SOIC	0.209 "	Non-Volatile	64 Gbit	80 MHz	Surface Mount	FLASH - NOR	1.7 V	2 V	8-SOIC	8M x 8	105 °C	-40 °C	FLASH
Infineon Technologies S25FS064SDSMFA010	QPI Quad I/O SPI	5.3 mm	8-SOIC	0.209 "	Non-Volatile	64 Gbit	80 MHz	Surface Mount	FLASH - NOR	1.7 V	2 V	8-SOIC	8M x 8	85 °C	-40 °C	FLASH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 1.75

Description

General part information

S25FS064 Series

FLASH - NOR Memory IC 64Mbit SPI - Quad I/O, QPI 133 MHz 8-LGA (5x6)

Documents

Technical documentation and resources

No documents available
