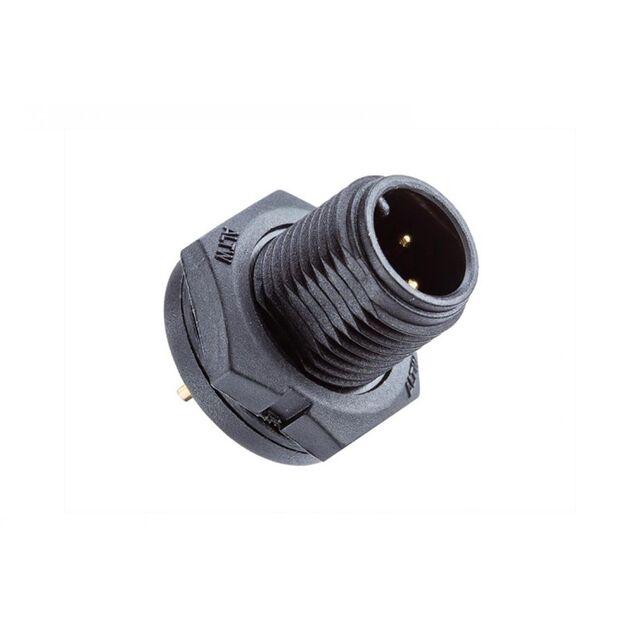

AU-04PMMP-SC7001

Active

Amphenol LTW

CERES, MINI SIZE, 2A, 04 PINS, R

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MINI SIZE, 2A, 04 PINS, R

Technical Specifications

Parameters and characteristics for this part

Specification	AU-04PMMP-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	A
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Mounting Type	Color	Connector Type	Termination	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Primary Material	Ingress Protection	Current Rating (Amps)	Orientation	Shell Size - Insert	Mounting Feature	Shielding	Number of Positions	Voltage Rating	Insert Material	Shell Material
Amphenol LTW AU-04PMMP-SC7001	Panel Mount Through Hole	Black	Male Pins Receptacle	Solder	Gold	-40 °C	105 ░C	Copper Alloy	Plastic	IP67 - Dust Tight Waterproof	2 A	Keyed	A	Bulkhead - Front Side Nut	Unshielded	4	250 VDC	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)
Amphenol LTW AU-04PMMP-SS7001	Panel Mount Through Hole	Black	Male Pins Receptacle	Solder	Gold	-40 °C	105 ░C	Copper Alloy	Plastic	IP67 - Dust Tight Waterproof	2 A	Keyed	A	Flange	Unshielded	4	250 VDC	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder
