PS2P-LIN-CE-M002-1A0-L0000-ELS120-05

Active

Amphenol Piher Sensing Systems

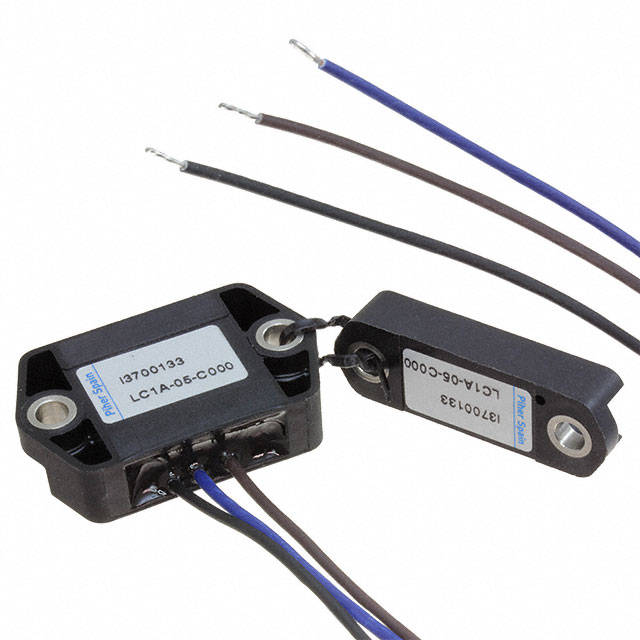

SENSOR LINEAR 12MM WIRE LEADS

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

SENSOR LINEAR 12MM WIRE LEADS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PS2P-LIN-CE-M002-1A0-L0000-ELS120-05	PS2P Series

Actuator Type	External Magnet, Included	External Magnet, Included
For Measuring	Linear Position	Linear Position, Linear, Rotary, Angle
Linear Range [Max]	12 mm	12 mm
Linear Range [Max]	0.47 in	0.47 in
Linear Range [Min]	0 in	0 in
Linear Range [Min]	0 mm	0 mm
Linearity	1 %	1 %
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output	Analog Voltage	Analog Voltage
Package / Case	Box with Wire Leads	Box with Wire Leads
Rotation Angle - Electrical, Mechanical	-	360 °
Rotation Angle - Electrical, Mechanical	-	0 °
Technology	Hall Effect	Hall Effect
Termination Style	Wire Leads	Wire Leads
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

SENSOR LINEAR 12MM WIRE LEADS

Part	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	For Measuring	Actuator Type	Technology	Termination Style	Linearity	Linear Range [Max]	Linear Range [Max]	Linear Range [Min]	Linear Range [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]
Amphenol Piher Sensing Systems PS2P-LIN-CE-M002-1A0-L0000-ELS120-05	Chassis Mount	4.5 V	5.5 V	Linear Position	External Magnet, Included	Hall Effect	Wire Leads	1 %	12 mm	0.47 in	0 in	0 mm	Box with Wire Leads	125 °C	-40 °C	Analog Voltage
Amphenol Piher Sensing Systems PS2P-CON-CE-1A0-C0000-ERA360-05	Chassis Mount	4.5 V	5.5 V	Angle, Linear, Rotary	External Magnet, Included	Hall Effect	Wire Leads	1 %					Box with Wire Leads	125 °C	-40 °C	Analog Voltage	360 °	0 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Linear Position External Magnet, Included Wire Leads
