100R24-76B

Active

Parlex USA LLC

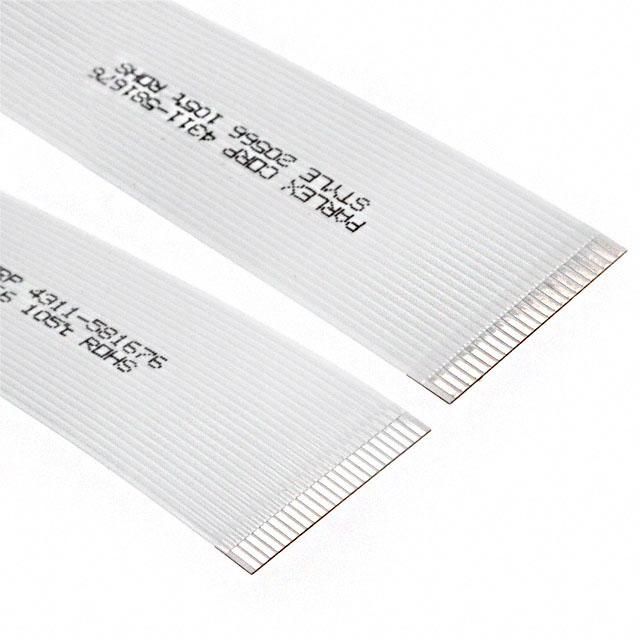

CABLE FFC/FPC 24POS 1MM 3"

Search across all available documentation for this part.

Active

Parlex USA LLC

CABLE FFC/FPC 24POS 1MM 3"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100R24-76B	100R24 Series

Cable Type	FPC, FFC	FPC, FFC
Length	3 in	2 - 5 in
Length	76.2 mm	50.8 - 304.8 mm
Length	-	7.992 - 12 in
Length	-	203 mm
Length - Exposed Ends [x]	0.14 in	0.14 in
Length - Exposed Ends [x]	3.56 mm	3.56 mm
Number of Conductors	24	24
Pitch [x]	0.039 in	0.039 in
Pitch [x]	1 mm	1 mm
Termination Style	Backers on Both Sides, Top on Both Sides	Backers on Both Sides, Top on Both Sides

CABLE FFC/FPC 24POS 1MM 12"

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Length	Length [x]	Cable Type	Pitch [x]	Pitch [x]	Termination Style	Length	Length [x]
Parlex USA LLC 100R24-305B	0.14 in	3.56 mm	24	304.8 mm	12 in	FFC, FPC	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R24-254B	0.14 in	3.56 mm	24	254 mm	10 in	FFC, FPC	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides
Parlex USA LLC 100R24-51B	0.14 in	3.56 mm	24	50.8 mm		FFC, FPC	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	2 in
Parlex USA LLC 100R24-76B	0.14 in	3.56 mm	24	76.2 mm		FFC, FPC	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	3 in
Parlex USA LLC 100R24-203B	0.14 in	3.56 mm	24		7.992 in	FFC, FPC	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides		203 mm
Parlex USA LLC 100R24-127B	0.14 in	3.56 mm	24	127 mm		FFC, FPC	0.039 in	1 mm	Backers on Both Sides, Top on Both Sides	5 in
