242NR01-4"X10YD

Active

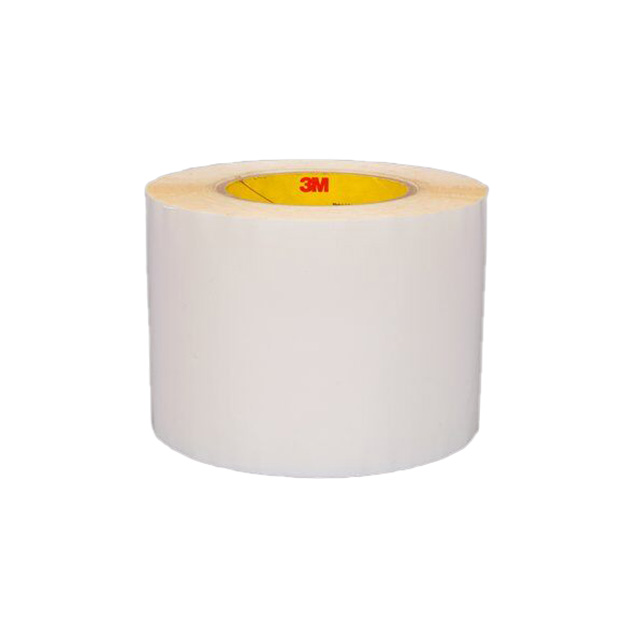

TAPE DAMPING POLYMER 4"X10YDS

Search across all available documentation for this part.

Active

TAPE DAMPING POLYMER 4"X10YDS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	242NR01-4"X10YD	242NR01 Series

Adhesive	Polymer	Polymer
Length	-	540 ft
Length	-	180 yds
Length	-	164.6 m
Length [x]	30 ft	30 ft
Length [x]	9.1 m	9.1 m
Length [x]	10 yds	10 yds
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C	16 - 60 °F
Tape Type	Damping Polymer	Damping Polymer
Temperature Range [Max]	65 °C	65 °C
Temperature Range [Max]	65 °C	65 °C
Temperature Range [Min]	0 °C	0 °C
Temperature Range [Min]	0 °C	0 °C
Thickness - Adhesive	1 mils	1 mils
Thickness - Adhesive	0.025 mm	0.025 mm
Thickness - Adhesive	0.001 in	0.001 in
Thickness - Backing, Carrier	0.006 in	0.006 in
Thickness - Backing, Carrier	6 mils	6 mils
Thickness - Backing, Carrier	0.152 mm	0.152 mm
Usage	Vibration Damping	Vibration Damping
Width	-	23.5 "
Width	-	596.9 mm
Width [x]	4 "	4 - 4.9 in
Width [x]	101.6 mm	101.6 - 124.46 mm

TAPE DAMPING POLYMER 4.90"X180YD

Part	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Usage	Length	Length	Length	Temperature Range [Max]	Temperature Range [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life Start	Width [x]	Width [x]	Adhesive	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Shelf Life	Length [x]	Length [x]	Length [x]	Width [y]	Width
3M 242NR01-4.9"X180YD	1 mils	0.025 mm	0.001 in	Vibration Damping	540 ft	180 yds	164.6 m	65 °C	65 °C	16 °C, 60 °F	27 °C, 80 °F	Date of Manufacture	4.9 in	124.46 mm	Polymer	0.006 in	6 mils	0.152 mm	Damping Polymer	24 Months
3M 242NR01-4"X10YD	1 mils	0.025 mm	0.001 in	Vibration Damping				65 °C	65 °C	16 °C, 60 °F	27 °C, 80 °F	Date of Manufacture	4 "	101.6 mm	Polymer	0.006 in	6 mils	0.152 mm	Damping Polymer	24 Months	30 ft	9.1 m	10 yds
3M 242NR01-23.5"X180YD	1 mils	0.025 mm	0.001 in	Vibration Damping	540 ft	180 yds	164.6 m	65 °C	65 °C	16 °C, 60 °F	27 °C, 80 °F	Date of Manufacture			Polymer	0.006 in	6 mils	0.152 mm	Damping Polymer	24 Months				23.5 "	596.9 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Damping Polymer Tape Polymer Adhesive 4.00" (101.60mm) X 30' (9.1m) 10 yds
